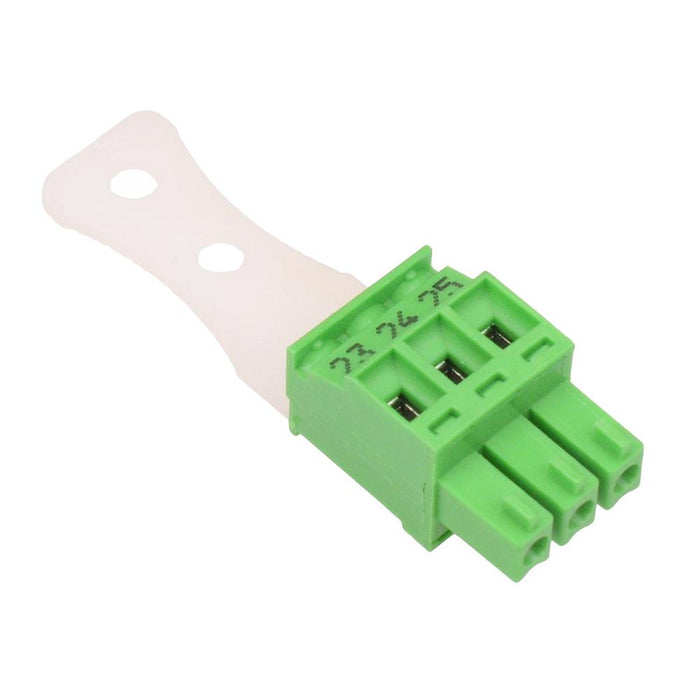

3-Way 3.81mm Vertical Pluggable Terminal Block W/Handle 8A 300V
by PTR HARTMANN
SKU 492478
MPN: AKZ1700/3L-3.81-V-B-GREEN
Availability:
270 in stock
Original price
£0.30
-
Original price
£0.30
Original price
£0.30
£0.30
£0.30
-
£0.30
Current price
£0.30
3 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 3.81mm pitch and vertical wire entry. The terminal blocks are rated up to 8A, making them suitable for a wide range of PCB applications.
3 pole 3.81mm pitch Vertical wire entry With handle Printed 20, 21, 22 Material: PA66 Rating: 8A 300V Wire size: 28-16AWG
Specification
| Back Order Lead Time | 120 |
| Colour | Green |
| Contact Material | Bronze |
| Current Rating | 8A |
| Housing Material | PA66 |
| MOQ | 5 |
| Mounting Type | Cable Mount |
| Number of Ways | 3 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 3.81mm |
| Termination Method | Screw |
| Voltage Rating | 300V |
| Wire Range | 28-16AWG |
