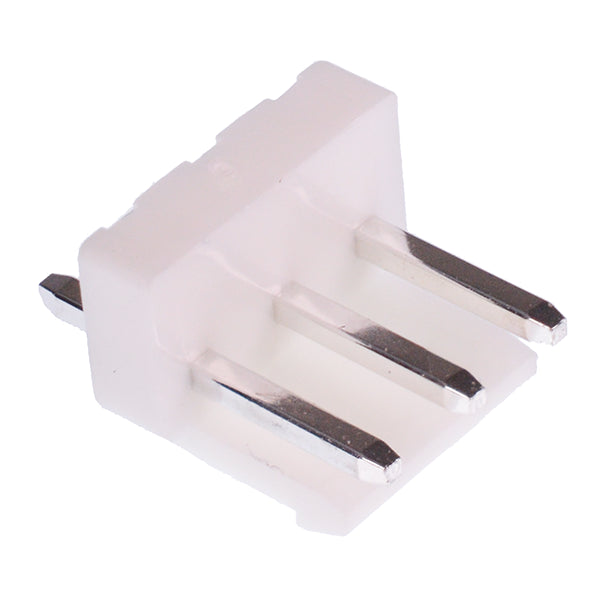

3 Way 3.96mm PCB Straight Pin header

SKU 484685

MPN: 484685

Availability:
2595 in stock
Original price £0.12 - Original price £0.12
Original price
£0.12
£0.12 - £0.12
Current price £0.12
Single row 3 way pin header featuring 3.96mm pitch suitable for connecting wires to PCBs. The headers feature a friction lock to ensure secure retention when mated, suitable as a replacement for JST VH.

  • 3.96mm pitch
  • Solder termination
  • PA66 housing
  • Rated Current: 10A
  • Rated Voltage: 250V
  • Wire range: 18-26AWG
  • Specification
    Back Order Lead Time 45 Days
    Contact Material Tin Plated Brass
    Current Rating 10A
    Housing Material PA66
    MOQ 5
    Mounting Type PCB Mount
    Number of Ways 3
    Operating Temperature -25°C to +85°C
    Pitch 3.96mm
    Termination Method Solder
    Voltage Rating 250VAC
    Wire Range 26-18AWG
