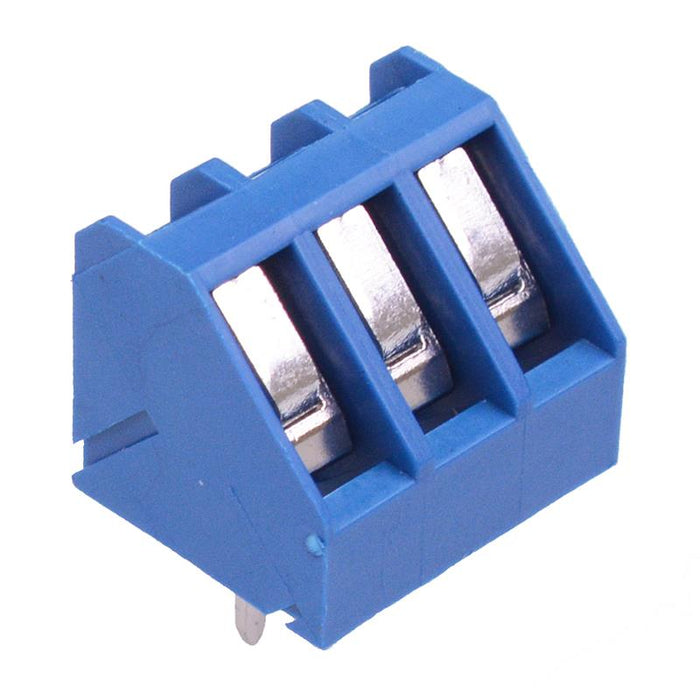

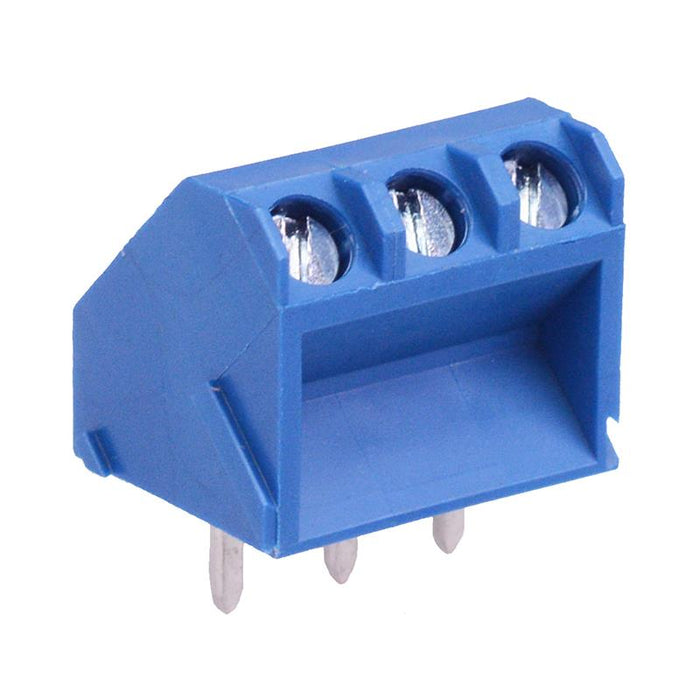

3-Way 5.00mm 45° PCB Terminal Block 15A 300V
by Degson
SKU 488782
MPN: DG330-5.0-03P12
Availability:
15 in stock
Original price
£0.35
-
Original price
£0.35
Original price
£0.35
£0.37
£0.37
-
£0.37
Current price
£0.37
3 pole PCB terminal block by Degson, featuring a 5.0mm pitch and 45° cable entry. The terminal blocks are rated up to 15A, suitable for a wide range of PCB through hole applications.
3 pole 5.00mm pitch 45° cable entry End stackable Material: PA66 Rating: 15A 300V PCB hole diameter: 1.5mm Height above PCB: 12.5mm Depth: 12.5mm Wire size: 22-12AWG
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Housing Material | Nylon |
| MOQ | 1 |
| Mounting Type | PCB Mount |
| Number of Ways | 3 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination Method | Through Hole |
| Voltage Rating | 300V |
| Wire Range | 22-12AWG |
