3-Way 5.00mm PCB Terminal Block Grey 20A 300V
by PTR HARTMANN
SKU 487394
MPN: AK100/3DS-5.0-V-GREY
Availability:
6015 in stock
Original price
£0.36
-
Original price
£0.36
Original price
£0.36
Inc VAT
£0.36
-
£0.36
Current price
£0.36
Inc VAT

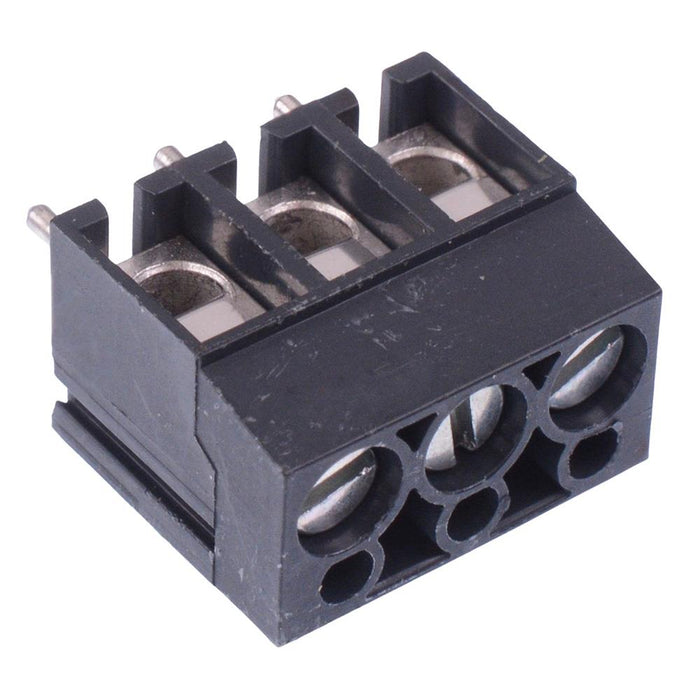

3 pole PCB terminal block manufactured by PTR HARTMANN, featuring a 5mm pitch and parallel wire entry to the board. The terminal blocks are rated up to 20A, making them suitable for a wide range of PCB applications.
3 pole 5.00mm pitch Wire entry parallel to the board Material: PA66 Rating: 20A 300V Wire size: 22-12AWG
Specification
| Back order lead time | 10 Days |
| Colour | Grey |
| Contact material | Brass |
| Current rating | 20A |
| Housing material | PA66 |
| Mounting type | PCB Mount |
| Number of ways | 3 |
| Operating temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination method | Screw |
| Voltage rating | 300VAC |
| Wire range | 22-12AWG |
