3-Way 5.00mm Pin Strip Pluggable Terminal Block Grey 8A 300V
by PTR HARTMANN
SKU 488475
MPN: AK130/03-5.0-GREY
Availability:
66 in stock
Original price
£0.60
-
Original price
£0.60
Original price
£0.60
£0.60
£0.60
-
£0.60
Current price
£0.60

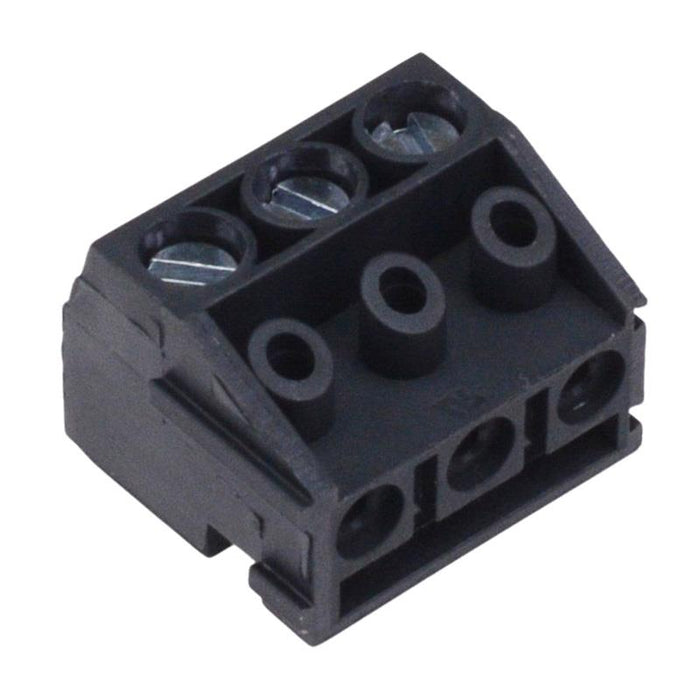

3 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 5mm pitch and parallel or vertical wire connection. The terminal blocks are rated up to 8A, making them suitable for a wide range of PCB applications.
3 pole 5.00mm pitch Connects onto pin strips on circuit boards Parallel or vertical wire connection Horizontal or vertical plugging on pin strip Material: PA66 Rating: 8A 300V Wire size: 22-12AWG
Specification
| Back Order Lead Time | 120 |
| Colour | Grey |
| Contact Material | Copper Alloy |
| Current Rating | 8A |
| Housing Material | PA66 |
| MOQ | 5 |
| Mounting Type | Cable Mount |
| Number of Ways | 3 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 22-12AWG |
