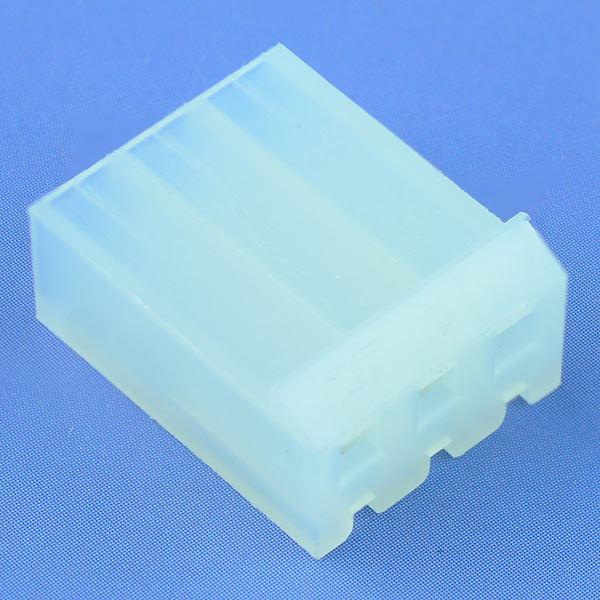

3 Way 5.08mm PCB Female Housing
SKU 481134
MPN: 481134
Availability:
332 in stock
Original price
£0.16
-
Original price
£0.16
Original price
£0.16
£0.16
-
£0.16
Current price
£0.16
Single row 3 way pin housing featuring 5.08mm pitch and straight orientation. The housing is suitable as a replacement for Molex 5058 connectors.
5.08mm pitch PA66 housing Rated Current: 5A Rated Voltage: 250V Wire range: 18-24AWG
Specification
| Back Order Lead Time | 45 Days |
| Contact Material | Tin Plated Brass |
| Current Rating | 5A |
| Housing Material | PA66 |
| MOQ | 5 |
| Mounting Type | Cable Mount |
| Number of Ways | 3 |
| Operating Temperature | -25°C to +85°C |
| Pitch | 5.08mm |
| Termination Method | Crimp |
| Voltage Rating | 250VAC |
| Wire Range | 18-24AWG |
