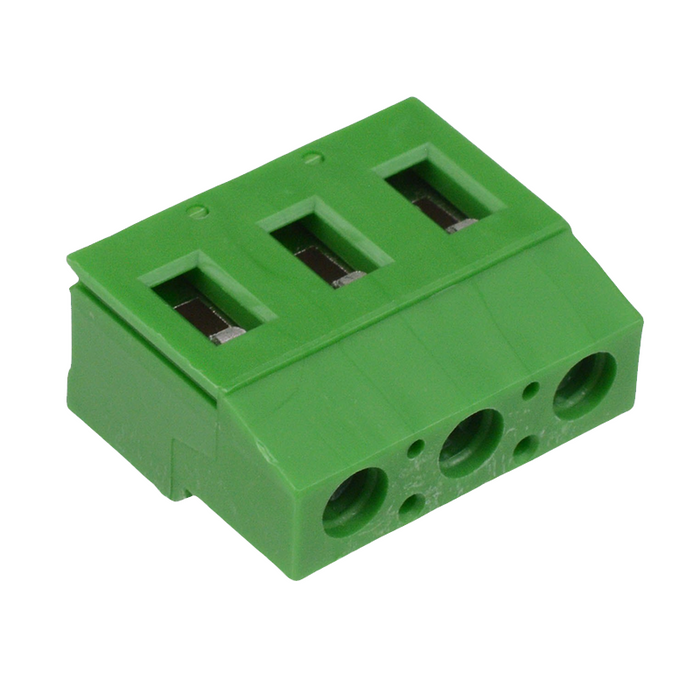

3-Way 7.5mm PCB Terminal Block Green 20A 300V
by PTR HARTMANN
SKU 488480
MPN: AK710/03-7.5-V-GREEN
Availability:
73 in stock
Save 3%
Original price
£1.05
Original price
£1.05
-
Original price
£1.05
Original price
£1.05
Current price
£1.02
£1.02
-
£1.02
Current price
£1.02
3 pole PCB terminal block manufactured by PTR HARTMANN, featuring a 7.5mm pitch and parallel wire entry to the board. The terminal blocks are rated up to 20A, making them suitable for a wide range of PCB applications.
- 3 pole
- 7.5mm pitch
- Wire entry parallel to the board
- Material: PA66
- PCB hole diameter: 1.3mm
- Rating: 20A 300V
- Wire size: 30-12AWG
Specification
| Back Order Lead Time | 10 Days |
| Colour | Green |
| Contact Material | Brass |
| Current Rating | 20A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 3 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 7.50mm |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 30-12AWG |
