3 Way M12 Male Front Mounting Receptacle Circular Connector IP68 4A 250V
by Degson
SKU 488852
MPN: SD-M12A-03P-MM-SH8002-00AH
Availability:
100 in stock
Original price
£2.87
-
Original price
£2.87
Original price
£2.87
Inc VAT
£2.87
-
£2.87
Current price
£2.87
Inc VAT

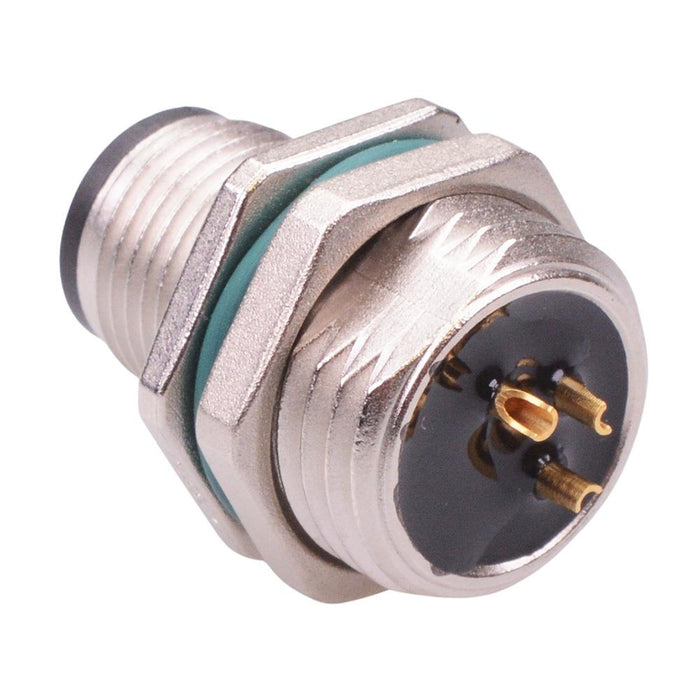

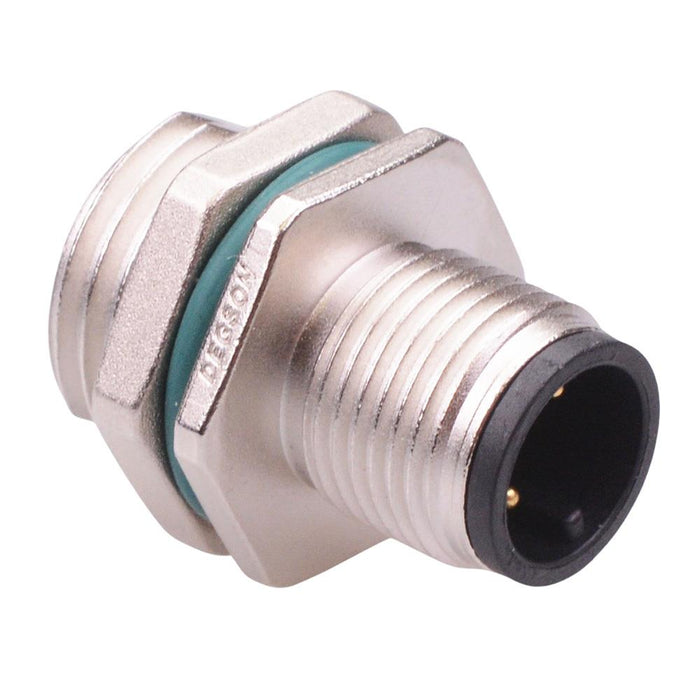

3 contact male receptacle featuring a M12 body with solder terminals, designed for front mounting to the panel. The connector is sealed to IP68 making it suitable for industrial, signal, power supply, data transmission and various other applications. The socket is compliant with IEC 61076 standard and is compatible with other connectors on the market with the same contact arrangement.
3 male contacts (A coded) M12*1.0 thread Solder terminals Sealed to IP68 Unshielded Current rating: 4A Voltage rating: 250V Mounting thread: M16*1.5 Panel thickness: 4.5mm max Contact carrier material: PA Contact material: gold plated copper alloy Body length: 23mm
Specification
| Back order lead time | 120 Days |
| Contact material | Gold Plated Copper Alloy |
| Current rating | 4A |
| Gender | Male |
| Housing material | Metal |
| Mounting type | Panel Mount |
| Number of ways | 3 |
| Operating temperature | -40°C to +105°C |
| Panel cut out | 16mm |
| Protection level | IP68 |
| Termination method | Solder |
| Thread size | M12 |
| Voltage rating | 250V |
