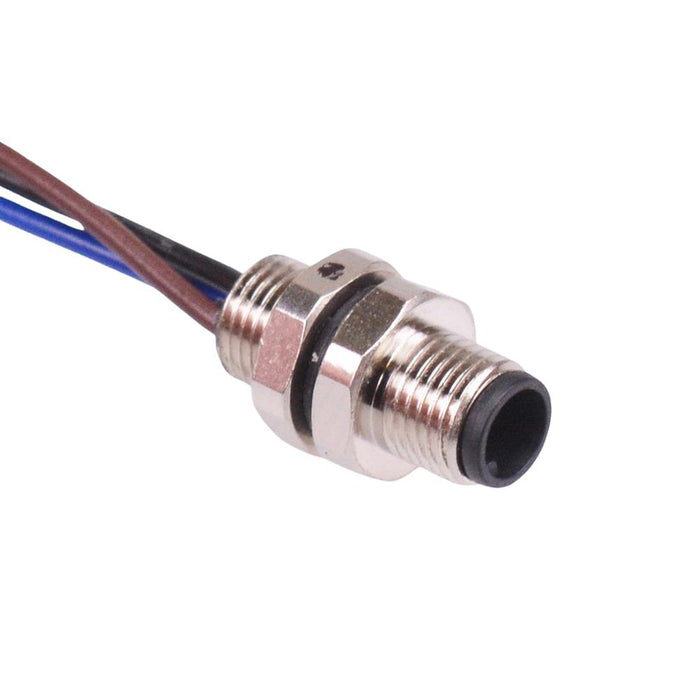

3 Way M5 Prewired Male Front Mounting Receptacle Circular Connector IP67 1A
by Degson
SKU 493005
MPN: SD-M5A-03P-MM-SH7A50-00Z(H)
Availability:
100 in stock
Original price
£5.59
-
Original price
£5.59
Original price
£5.59
£5.59
-
£5.59
Current price
£5.59
3 contact male receptacle featuring a M5 body with 50cm of PVC cable, designed for front mounting to the panel. The circular connector utilises a space saving design, sealed to IP67 making it suitable for industrial and various other applications. The receptacle is compliant with IEC 61076 standard and is compatible with other connectors on the market with the same contact arrangement.
3 male contacts (A coded) M5*0.5 thread Prewired 0.5m 26WG PVC cable Sealed to IP67 Unshielded Current rating: 1A Voltage rating: 60V Panel cut-out: 5.2mm Contact carrier material: PA Contact material: gold plated copper alloy Wiring list: 1 BN, 3 BU, 4 BK Body length: 12.0mm
Specification
| Back Order Lead Time | 120 Days |
| Current Rating | 1A |
| Gender | Male |
| Housing Material | Metal |
| MOQ | 1 |
| Mounting Type | Panel |
| Number of Ways | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 5.2mm |
| Panel Thickness | 1-2mm |
| Protection Level | IP67 |
| Termination Method | Cable |
| Thread Size | M5 |
| Voltage Rating | 60V |
