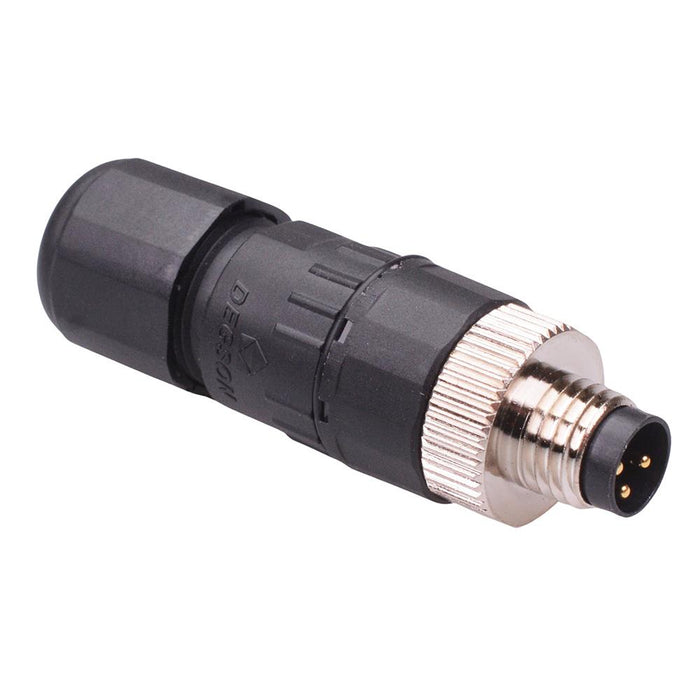

3 Way M8 Male Industrial Circular Connector IP67 3A

by Degson
SKU 488818

MPN: PB-M8A-03P-MM-SL7001-00A(H)

100 in stock
Original price £0.55 - Original price £0.55
Original price
£0.55 Inc VAT
£0.55 - £0.55
Current price £0.55 Inc VAT
3 contact M8 male circular connector featuring a straight nylon body and screw connections. The connector utilises a space saving design, sealed to IP67 making it suitable for industrial and various other applications. The plug is compliant with IEC 61076 standard and is compatible with other connectors on the market with the same contact arrangement.

  • 3 male contacts (A coded)
  • M8 series
  • Screw terminals
  • Sealed to IP67
  • Unshielded
  • Current rating: 3A
  • Voltage rating: 60V
  • Housing material: PA
  • Contact material: gold plated copper alloy
  • Dimensions: 46.5 x 14mm (length x diameter)
  • Specification
    Back order lead time 120 Days
    Contact material Gold Plated Copper Alloy
    Current rating 3A
    Gender Male
    Housing material PA
    Mounting type Cable Mount
    Number of ways 3
    Operating temperature -40°C to +80°C
    Protection level IP67
    Termination method Screw
    Thread size M8
    Voltage rating 60V
