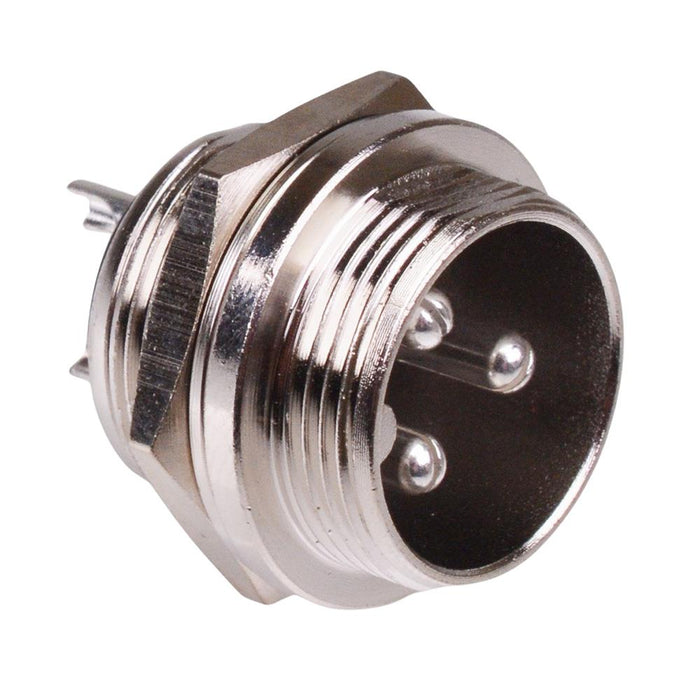

3 Way Male M19 Metal Circular Panel Mount Socket Connector

SKU 488523

MPN: 488523

98 in stock
Original price £1.82 - Original price £1.82
Original price
£1.82 Inc VAT
£1.82 - £1.82
Current price £1.82 Inc VAT
3 pole male circular connector featuring a metal body and IP55 protection rating. The socket features an M19 thread and high current rating suitable for a wide range of panel mount applications.

  • 3 ways
  • Rating: 35A 250V
  • Panel cut-out: 19mm
  • Solder contacts
  • Cable diameter: 9.5mm max
  • Specification
    Back order lead time 30 Days
    Contact material Copper
    Current rating 35A
    Gender Male
    Housing material Zinc Alloy
    Mounting type Panel Mount
    Number of ways 3
    Operating temperature -20°C to +85°C
    Protection level IP55
    Termination method Solder
    Thread size M19
    Voltage rating 250V
    Wire range 9.5mm Max
