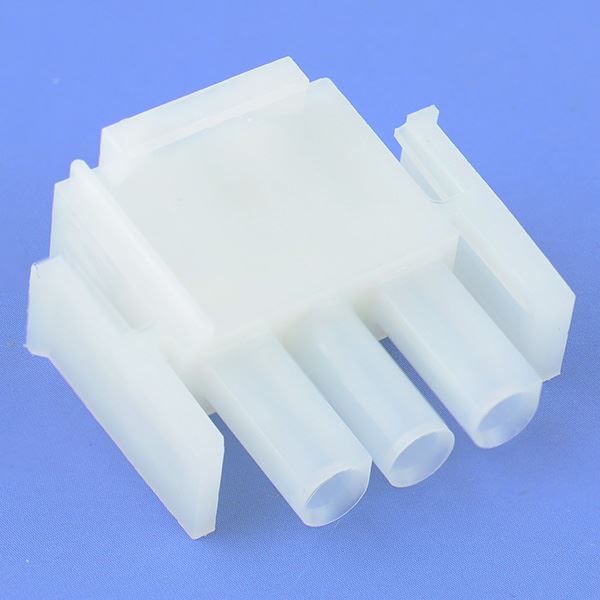

3 Way Male Mate N Lok Universal Connector
SKU 481515
MPN: 481515
Availability:
Only 5 left!
Original price
£1.35
-
Original price
£1.35
Original price
£1.35
£1.35
-
£1.35
Current price
£1.35
3 way male Mate N Lok universal connector suitable for providing a secure and reliable connection for your cable. The connectors feature a latching mechanism to prevent accidental disconnection and the design prevents the connectors being connected incorrectly.
Requires 2 pin terminals (purchased separately)
Cable size: 0.5-2mm2
Current rating: 10A per way
Voltage rating: 600VDC
Material: nylon 6.6
Colour: natural
Specification
| Back Order Lead Time | 5 Days |
| Current Rating | 10A Per Way |
| Gender | Male |
| Housing Material | Nylon |
| Mounting Type | Cable |
| Number of Ways | 3 |
| Operating Temperature | 120°C Max |
| Termination Method | Crimp |
| Voltage Rating | 600VDC |
| Wire Range | 0.5mm² to 2mm² |
