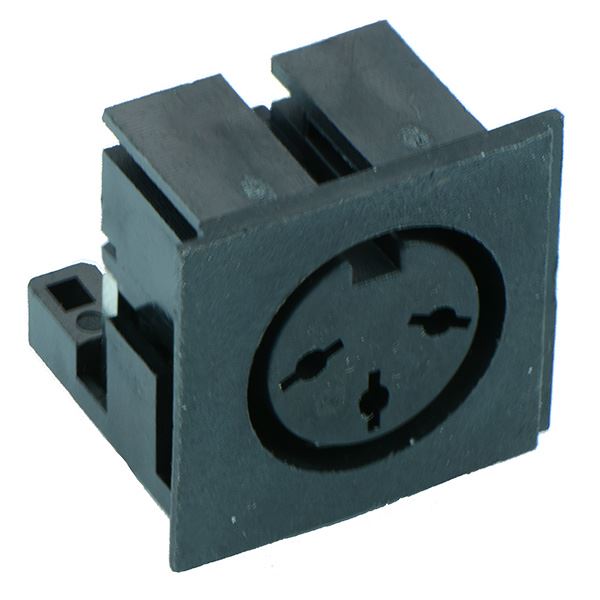

3-Way PCB DIN Socket
SKU 550904
MPN: 550904
Availability:
467 in stock
Original price
£0.38
-
Original price
£0.38
Original price
£0.38
£0.38
£0.38
-
£0.38
Current price
£0.38
DIN socket suitable for PCB mounting, with 5.0mm pitch suitable for mating with DIN plugs.
3 Ways Rating: 2A 12VDC Right angle orientation Material: PBT UL 94V-0
Specification
| Back Order Lead Time | 150 |
| MOQ | 5 |
| Colour | Black |
| Contact Material | Phosphor Bronze |
| Current Rating | 2A |
| Gender | Female |
| Housing Material | PBT |
| Mounting Type | PCB |
| Number of Poles | 3 |
| Operating Temperature | -25°C to +70°C |
| Termination Method | Solder |
| Voltage Rating | 12VDC |
