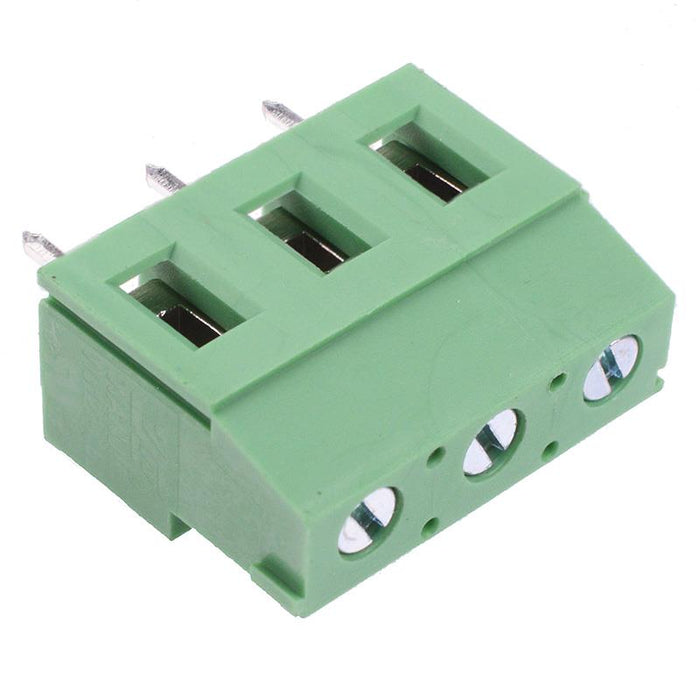

3 Way PCB Terminal Block Connector 7.62mm 20A
SKU 483133
MPN: 483133
Availability:
683 in stock
Save 18%
Original price
£0.56
Original price
£0.56
-
Original price
£0.56
Original price
£0.56
Current price
£0.46
£0.46
-
£0.46
Current price
£0.46
3 pole 7.62mm pitch terminal block moulded from PA66, suitable for a wide range of applications.
3 ways 7.62mm Pitch 20A Maximum Current 300V maximum voltage Slotted Screws End Stackable 12-26AWG wire range
Specification
| Back Order Lead Time | 30 Days |
| Colour | Green |
| Contact Material | Tin Plated Brass |
| Current Rating | 20A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 3 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 7.62mm |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 24-10AWG |
