3 Way Spring Lever Terminal Block Connector 32A 450V - Box of 50

by Degson
SKU 934959

MPN: DGBSC-SG01/4-03P17

Availability:
398 in stock
Original price £13.50 - Original price £13.50
Original price
£13.50 Inc VAT
£13.50 - £13.50
Current price £13.50 Inc VAT

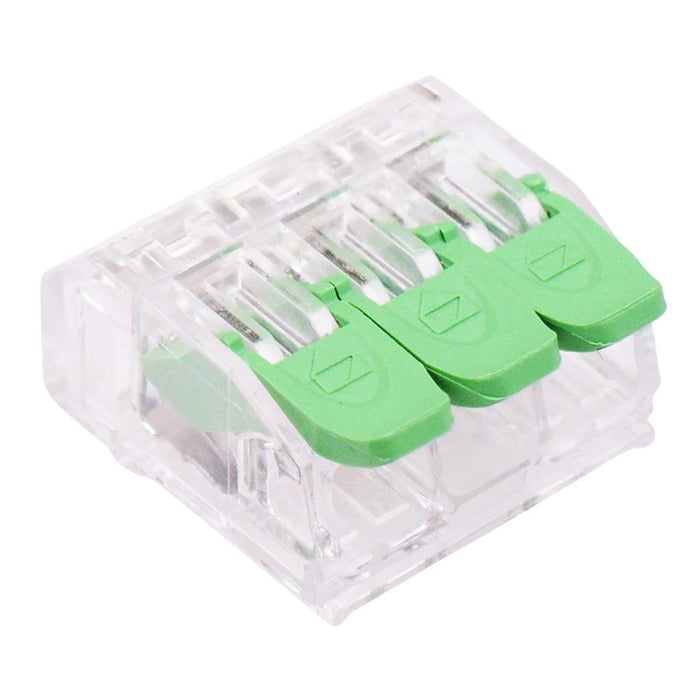

Save time and money with these 3 way terminal blocks by Degson. The connectors feature a spring lever allowing both stranded and solid wires to be connected without the need of any tools. The terminal blocks meet numerous certifications ensuring a reliable and strong connection is made with the cable. The spring lever design allows these connectors to be used in seconds unlike traditional screw alternatives and the 32A 450V rating makes them an ideal solution in numerous applications.

  • Pack size: 50
  • 3 ways
  • Push in spring connection
  • Rated current: 32A
  • Rated voltage: 450V
  • Compatible wire size: 24~12AWG / 0.2~4.0mm²
  • Strip length: 12mm
  • Pitch: 5.6mm
  • Contact material: tin plated copper
  • Insulation material: PC UL94V-2
  • Dimensions: 20 x 16.8 x 10.2mm (depth x length x height)
  • Certifications: UL, EAC, VDE, REACH, RoHS
  • Specification
    Colour Green
    Contact material Tin Plated Copper
    Current rating 32A
    Housing material PC
    Mounting type Cable Mount
    Number of ways 3
    Operating temperature -40°C to +85°C
    Pitch 5.6mm
    Termination method Spring Clamp
    Voltage rating 450VAC
    Wire range 24-12AWG
