3-Way Terminal Block 2.54mm Pitch 6A
SKU 551780
MPN: 551780
Availability:
68 in stock
Original price
£1.03
-
Original price
£1.03
Original price
£1.03
£1.03
£1.03
-
£1.03
Current price
£1.03

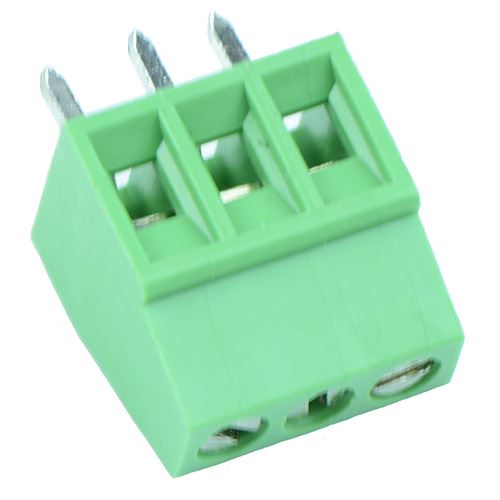

PCB terminal block manufactured from PA66 featuring a 2.54mm pitch and 3 poles.
6A current rating 125V voltage rating Screw termination Housing material: PA66 Wire range: 18-28AWG
Specification
| Back Order Lead Time | 30 Days |
| Colour | Green |
| Contact Material | Nickel Plated Brass |
| Current Rating | 6A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 3 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 2.54mm |
| Termination Method | Screw |
| Voltage Rating | 125VAC |
| Wire Range | 18-28AWG |
