30-90KΩ Photoresistor 150VDC

by Token
SKU 484921


46 in stock, ready to be shipped
Original price £0.99 - Original price £0.99
Original price
£0.99 Inc VAT
£0.99 - £0.99
Current price £0.99 Inc VAT

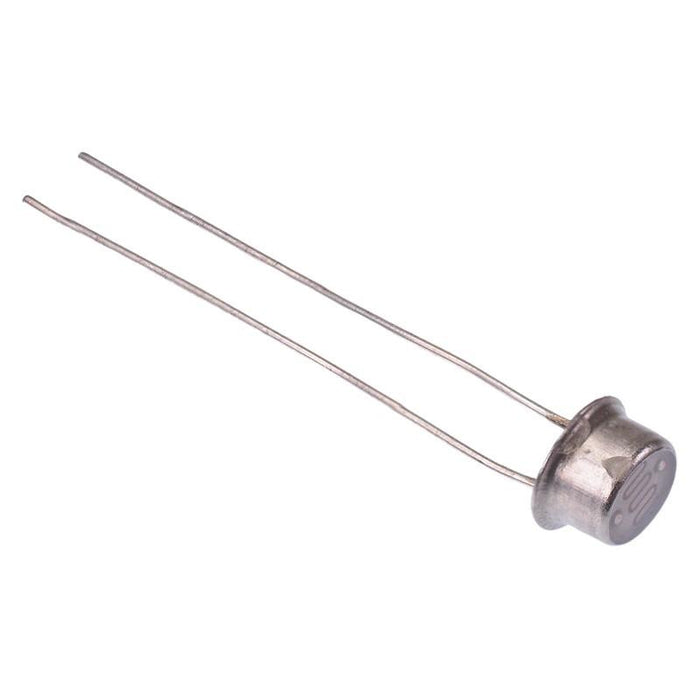

30-90K hermetically sealed photoresistor featuring a quick response and reliable performance. The photoresistor is suitable for applications including photoswitch, photoelectric control, auto flash for camera, electronic toys and industrial control.

  • Hermetically sealed
  • Maximum voltage: 150VDC
  • Resistance at 10 lux: 30-90KΩ
  • Dark resistance: 5MΩ min
  • Peak spectral: 540nm
  • Lead pitch: 3.4mm
  • Dimensions: 5.5 x 4mm (diameter x height)
  • Specification
    Mounting style Through Hole
    Peak wavelength 540nm
    Power 100mW
    Resistance at 10lx 30-90k
    Supply voltage 150VDC
