305m Black UL1015 14AWG 41/0.25mm Tinned Copper Stranded Wire
SKU 990221
MPN: 990221
Availability:
Only 3 left!
Original price
£196.21
-
Original price
£196.21
Original price
£196.21
Inc VAT
£196.21
-
£196.21
Current price
£196.21
Inc VAT

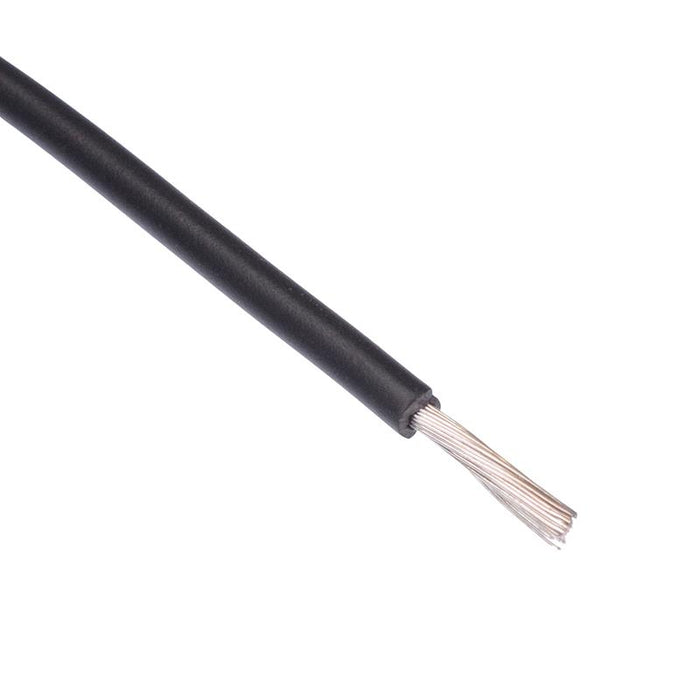

Black 14AWG multi-stranded copper wire featuring PVC insulation manufactured to UL1015 specification. The PVC insulation provides excellent resistance to oil, petrol, diesel and high temperatures. The cable is suitable for automotive and various other applications requiring a high performance wire.
Overall diameter: 3.5mm Wide temperature range Tinned copper conductor Rated voltage: 600V 41/0.25mm copper stranding Supplied in a 305 metre coil
Specification
| Back order lead time | 120 Days |
| Colour | Black |
| Conductor cross section | 2.08mm² |
| Conductor diameter | 1.88mm |
| Conductor material | Tinned Copper |
| Conductor stranding | 41/0.25mm |
| Current rating | 33A |
| Insulation material | PVC |
| Insulation thickness | 0.79mm |
| Operating temperature | -30°C to 105°C |
| Overall diameter | 3.5mm |
| Voltage rating | 600V |
| Wire gauge | 14AWG |
