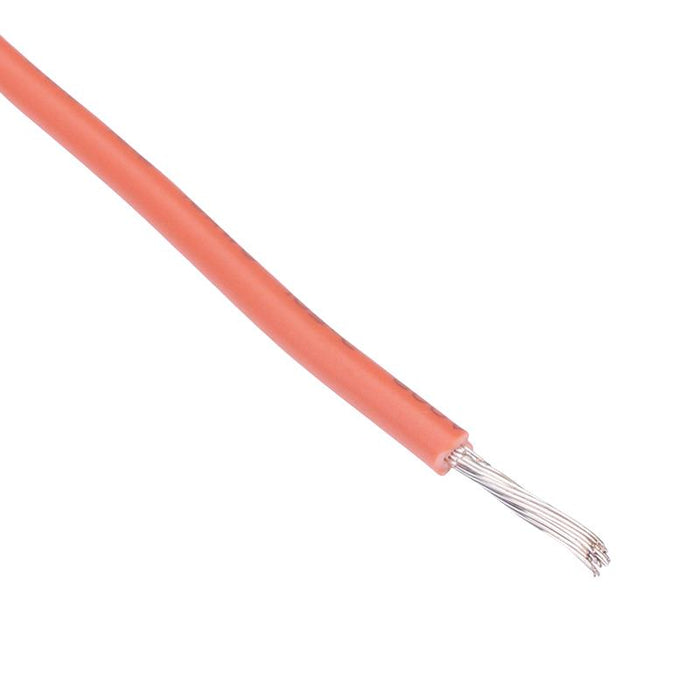

305m Orange UL1015 16AWG 26/0.25mm Tinned Copper Stranded Wire
SKU 990285
MPN: 990285
Availability:
Out of stock
Sold out
Original price
£128.72
-
Original price
£128.72
Original price
£128.72
Inc VAT
£128.72
-
£128.72
Current price
£128.72
Inc VAT
Orange 16AWG multi-stranded copper wire featuring PVC insulation manufactured to UL1015 specification. The PVC insulation provides excellent resistance to oil, petrol, diesel and high temperatures. The cable is suitable for automotive and various other applications requiring a high performance wire.
Overall diameter: 3.1mm Wide temperature range Tinned copper conductor Rated voltage: 600V 26/0.25mm copper stranding Supplied in a 305 metre coil
Specification
| Back order lead time | 120 Days |
| Colour | Orange |
| Conductor cross section | 1.31mm² |
| Conductor diameter | 1.5mm |
| Conductor material | Tinned Copper |
| Conductor stranding | 26/0.25mm |
| Current rating | 24A |
| Insulation material | PVC |
| Insulation thickness | 0.79mm |
| Operating temperature | -30°C to 105°C |
| Overall diameter | 3.1mm |
| Voltage rating | 600V |
| Wire gauge | 16AWG |
