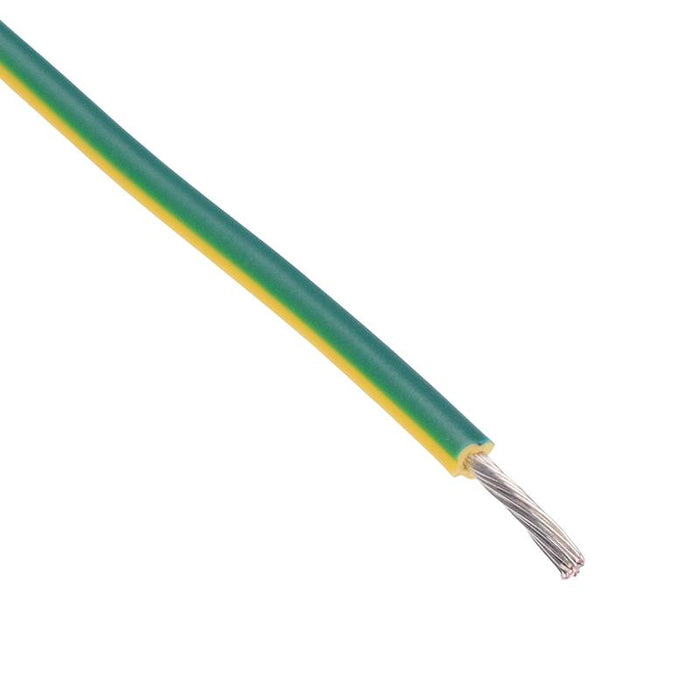

305m Yellow/Green UL1015 16AWG 26/0.25mm Tinned Copper Stranded Wire

SKU 990288

MPN: 990288

Availability:
Out of stock
Sold out
Original price £133.87 - Original price £133.87
Original price
£133.87
£133.87 - £133.87
Current price £133.87
Yellow / Green 16AWG multi-stranded copper wire featuring PVC insulation manufactured to UL1015 specification. The PVC insulation provides excellent resistance to oil, petrol, diesel and high temperatures. The cable is suitable for automotive and various other applications requiring a high performance wire.

  • Overall diameter: 3.1mm
  • Wide temperature range
  • Tinned copper conductor
  • Rated voltage: 600V
  • 26/0.25mm copper stranding
  • Supplied in a 305 metre coil
  • Specification
    Back Order Lead Time 120 Days
    Colour Yellow / Green
    Conductor Cross Section 1.31mm²
    Conductor Diameter 1.5mm
    Conductor Material Tinned Copper
    Conductor Stranding 26/0.25mm
    Current Rating 24A
    Insulation Material PVC
    Insulation Thickness 0.79mm
    Operating Temperature -30°C to 105°C
    Overall Diameter 3.1mm
    Voltage Rating 600V
    Wire Gauge 16AWG
