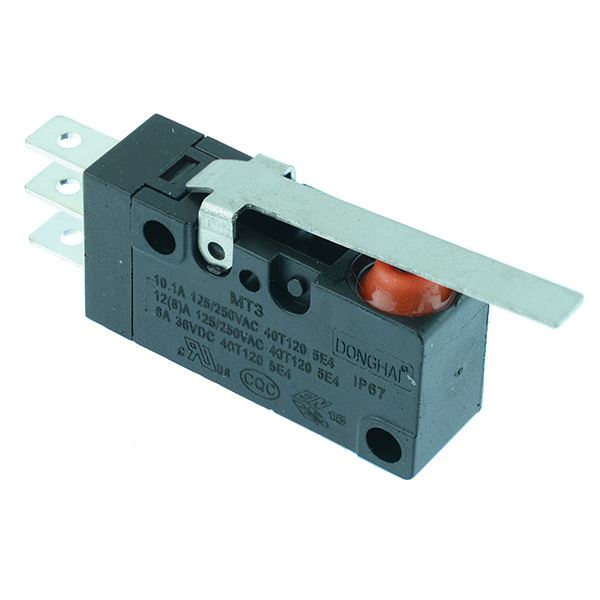

30mm Lever Waterproof Microswitch SPDT 10A IP67
SKU 481706
MPN: 481706
Availability:
206 in stock
Original price
£1.83
-
Original price
£1.83
Original price
£1.83
Inc VAT
£1.83
-
£1.83
Current price
£1.83
Inc VAT
Microswitch featuring a lever actuator, housed in a waterproof compact package capable of switching up to 10A. The switch features quick connect terminals and is suitable for domestic and industrial applications.
30mm lever actuator Rating: 10A 250VAC NO / NC contacts 4.8mm quick connect terminals Operating force: 300gf max Body dimensions: 33 x 10.3 x 15.8mm (Length x Width x Height)
Specification
| Back order lead time | 45 Days |
| Contact configuration | SPDT |
| Contact rating | 10A 250VAC |
| Current rating | 10A |
| Electrical life | 100,000 Cycles |
| Number of positions | 2 |
| Operating force | 300gf Max |
| Protection level | IP67 |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
