30mm Piezo Transducer 150mm Leads

SKU 484793

MPN: 484793

Availability:
589 in stock
Original price £0.80 - Original price £0.80
Original price
£0.80 Inc VAT
£0.80 - £0.80
Current price £0.80 Inc VAT

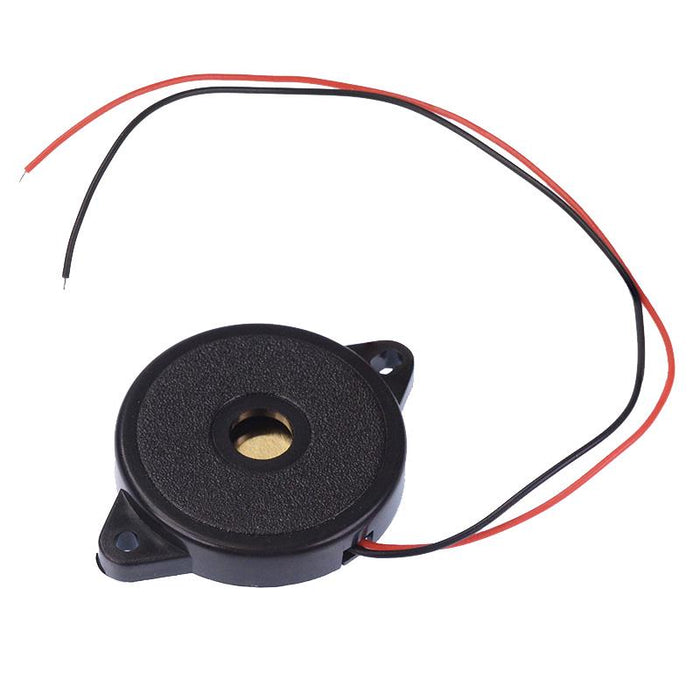

30mm piezo transducer suitable for use with a 12V peak square wave, capable of generating a range of audible tones and frequencies. The transducer is suitable for panel mount applications and provides a minimum output of 88dB at 30cm.

  • Rated voltage: 12V peak square wave
  • Maximum allowable voltage: 30V peak square wave
  • Rated current: 4mA at 1.3kHz / 12V peak square wave
  • Minimum sound level: 88dB at 1.3kHz / 12V peak square wave / 30cm
  • Resonant frequency: 1.3kHz
  • Dimensions: 30 x 5.7mm (diameter x height)
  • Mounting hole pitch: 35mm
  • 150mm leads
  • Specification
    Back order lead time 45 Days
    Frequency 1.3KHz
    Input voltage 30V Max Peak Square Wave
    Mounting style Panel Mount
    Operating temperature -20°C to +60°C
    Rated voltage 12VDC
