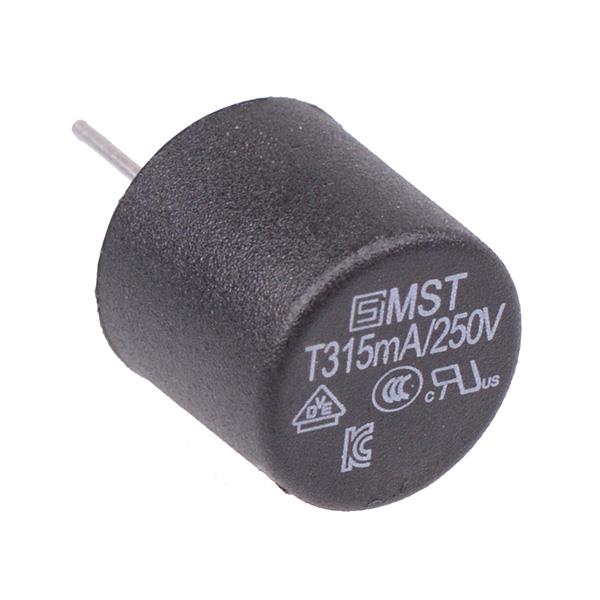

315mA Radial Time Delay Subminiature Circular Fuse

315mA subminiature radial leaded circular fuse featuring time delay blow characteristic suitable for PCB mounting or use with PCB socket. The fuse can be directly soldered to the PCB and features a low breaking capacity. Suitable for primary protection, power supply adapters and switching mode power supply applications.

• Dimensions: 8.5 x 8.5mm (Diameter x Height)
• Pin spacing: 5.08mm
• Voltage rating: 250V
• Pitch: 5.08mm
• VDE, CAS, UL approved
