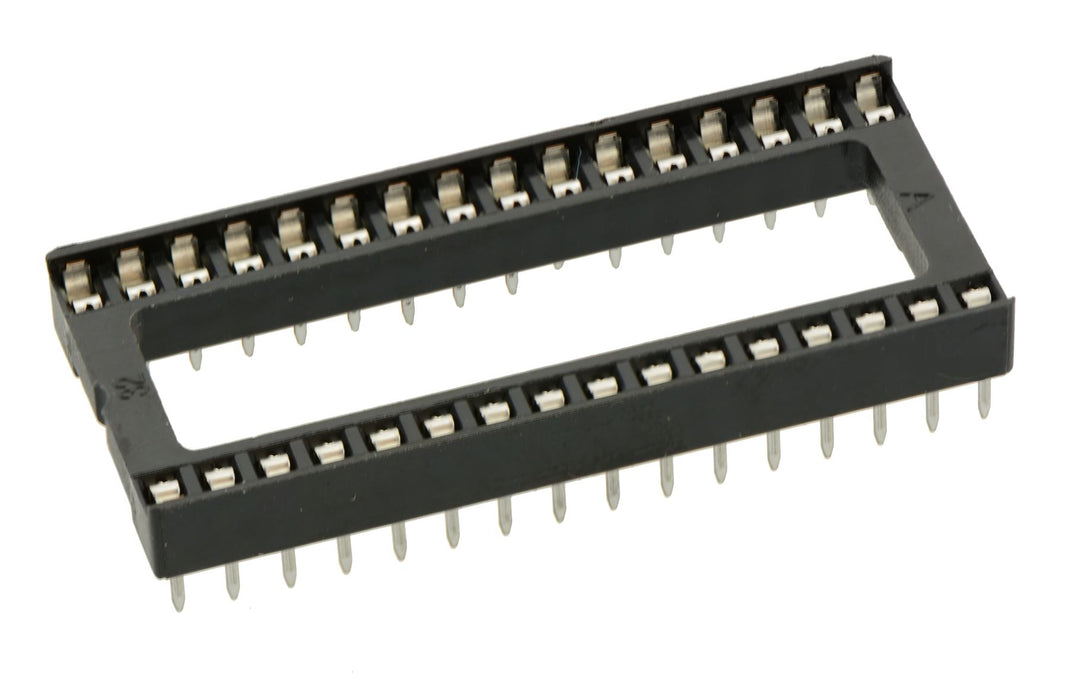

32-Pin DIP IC Socket 15.24mm
SKU 222008
MPN: 222008
Availability:
2278 in stock
Original price
£0.21
-
Original price
£0.21
Original price
£0.21
£0.21
£0.21
-
£0.21
Current price
£0.21
Dual inline sockets with a thermoplastic body and tin plated phosphor bronze contacts. The sockets feature screw machined pins and can be mounted end to end to form one continuos run.
PCB hole: 0.6mm Height (above PCB): 5.1mm 2.54mm pitch Current rating: 1A Dimensions: 40.54 x 17.78 x 5.1mm (Length x Width x Height)
Specification
| Back Order Lead Time | 150 |
| Contact Material | Tin Plated Phosphor Bronze |
| Current Rating | 1A |
| Housing Material | PBT |
| MOQ | 10 |
| Mounting Type | PCB Mount |
| Number of Pins | 32 |
| Number of Ways | 32 |
| Operating Temperature | -45°C to +105°C |
| Pitch | 15.24mm |
| Termination Method | Solder |
