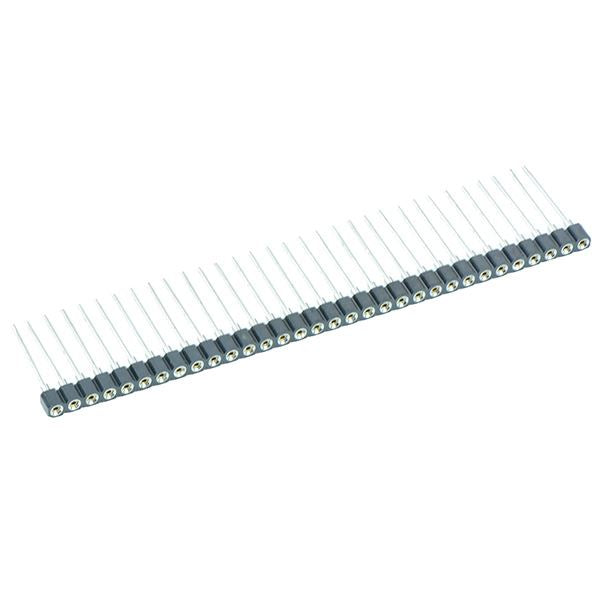

32 Way 2.54mm Turned Pin Single In Line SIL Socket 17.8mm Height
SKU 550950
MPN: 550950
Availability:
500 in stock
Original price
£2.13
-
Original price
£2.13
Original price
£2.13
£2.13
£2.13
-
£2.13
Current price
£2.13
Single in-line socket featuring a 2.54mm pitch and turned pins. Manufactured from PPS for use with PCBs.
32 Ways Contact material: phosphor bronze Housing material: PPS UL 94V-0 Height: 17.8mm Pin height: 12.9mm Accepted hole diameter: 0.40 - 0.56mm Pin diameter: 0.64mm
Specification
| Back Order Lead Time | 150 |
| Contact Material | Gold Plated Phosphor Bronze |
| Current Rating | 3A |
| Housing Material | PBS |
| MOQ | 1 |
| Mounting Type | PCB Mount |
| Number of Pins | 32 |
| Number of Ways | 32 |
| Operating Temperature | -45°C to +105°C |
| Pitch | 2.54mm |
| Termination Method | Solder |
