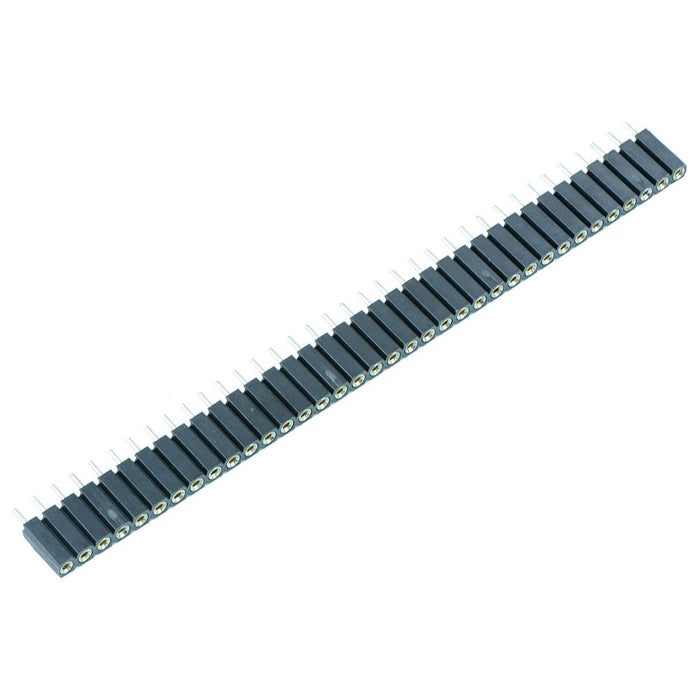

36 Way 2.54mm Single In Line SIL Socket
SKU 550948
MPN: 550948
Availability:
240 in stock
Original price
£1.84
-
Original price
£1.84
Original price
£1.84
Inc VAT
£1.84
-
£1.84
Current price
£1.84
Inc VAT
Single in-line socket featuring a 2.54mm pitch, manufactured from PPS for use with PCBs.
36 Ways Contact material: phosphor bronze Housing material: PPS UL 94V-0 Height above PCB: 7.0mm Pin height: 3.0mm Hole diameter: 1.27mm
Specification
| Back order lead time | 30 Days |
| Contact material | Phosphor Bronze |
| Current rating | 1A |
| Housing material | PS |
| Mounting type | PCB Mount |
| Number of pins | 36 |
| Number of ways | 36 |
| Operating temperature | -45°C to +105°C |
| Pitch | 2.54mm |
| Termination method | Solder |
