3649NF APEM On-Off-On Sealed 12mm Toggle Switch DPDT IP67 12A 28VDC
by APEM
SKU 487786
MPN: 3649NF
Availability:
13 in stock
Original price
£23.12
-
Original price
£23.12
Original price
£23.12
Inc VAT
£23.12
-
£23.12
Current price
£23.12
Inc VAT

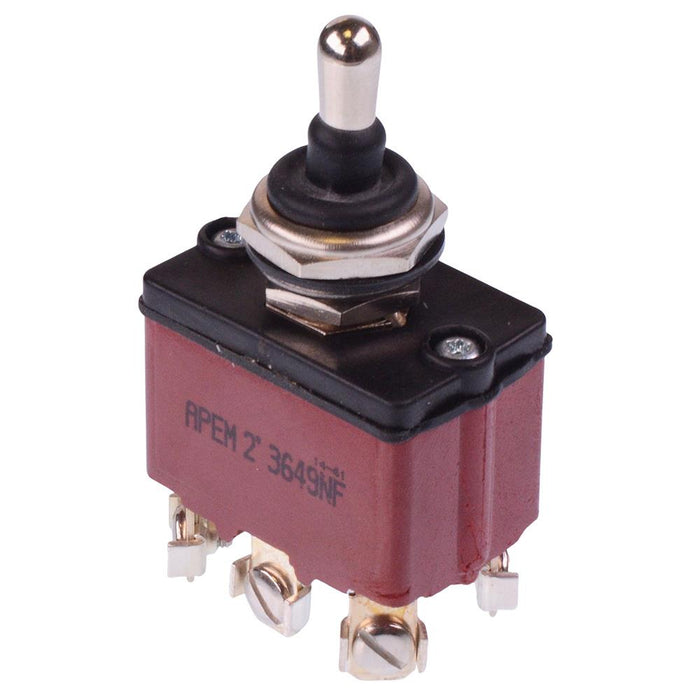

The 3649NF is a high performance toggle switch manufactured by APEM, featuring DPDT contacts and screw terminals. The switch features a 12A 28VDC rating and is sealed to IP67 making it suitable for outdoor applications.
DPDT contacts On-Off-On momentary function Screw terminals Rating: 12A 28VDC IP67 protection rating Solid silver contacts Panel cut-out: 12.2mm Panel thickness: 2mm max. with all accessories
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | DPDT |
| Contact material | Silver |
| Contact rating | 12A 28VDC |
| Current rating | 12A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 12.2mm |
| Product series | 3600NF |
| Switch operation | On-Off-On |
| Terminal type | Screw |
| Voltage rating | 28VDC |
