390V Metal Oxide Varistor 120J 16.5mm JVR14N391K
by Joyin
SKU 552315
MPN: JVR14N391K
Back Order Availability: 5
Availability:
47 in stock, ready to be shipped
Original price
£0.70
-
Original price
£0.70
Original price
£0.70
Inc VAT
£0.70
-
£0.70
Current price
£0.70
Inc VAT

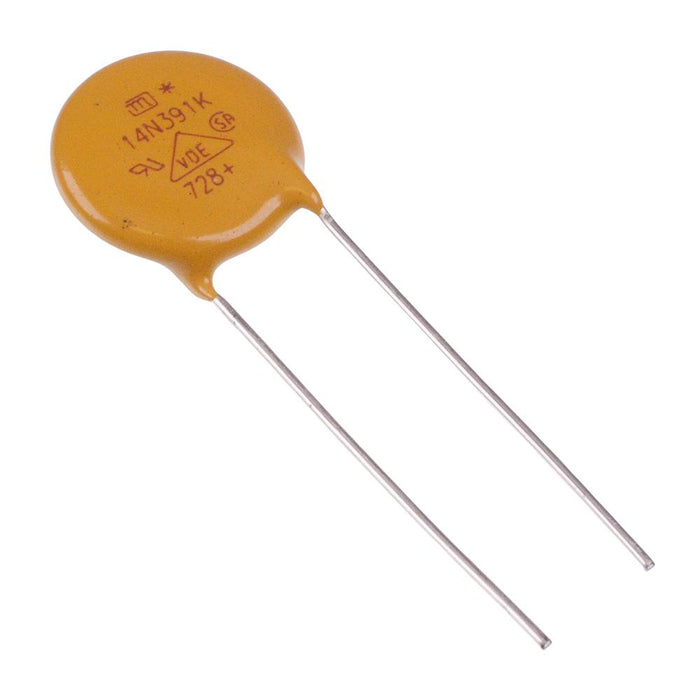

390V metal oxide varistor featuring radial leads and epoxy coated disc construction, suitable for protecting sensitive components against unwanted voltage spikes.
Varistor voltage: 390V Pitch: 7.5mm Disc diameter: 16.5mm Energy: 120J Operating voltage: 250V AC, 320V DC
Specification
| Back order lead time | 5 |
| Disc diameter | 16.5mm |
| Energy | 120J |
| Maximum operating voltage | 250VAC, 320VDC |
| Mounting type | Through Hole |
| Pitch | 7.5mm |
| Power rating | 600mW |
| Varistor voltage | 390V |
| Varistor voltage tolerance | ±10% |
