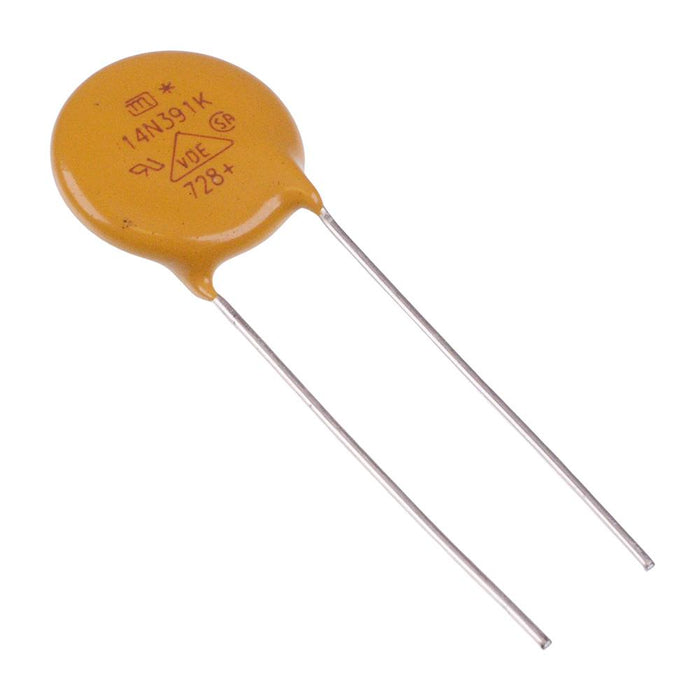

390V Metal Oxide Varistor 120J 16.5mm JVR14N391K
by Joyin
SKU 552315
MPN: JVR14N391K
Availability:
Only 2 left!
Original price
£0.78
-
Original price
£0.78
Original price
£0.78
£0.78
£0.78
-
£0.78
Current price
£0.78
390V metal oxide varistor featuring radial leads and epoxy coated disc construction, suitable for protecting sensitive components against unwanted voltage spikes.
Varistor voltage: 390V Pitch: 7.5mm Disc diameter: 16.5mm Energy: 120J Operating voltage: 250V AC, 320V DC
Specification
| Back Order Lead Time | 7 |
| Disc Diameter | 16.5mm |
| Energy | 120J |
| Maximum Operating Voltage | 250VAC, 320VDC |
| MOQ | 5 |
| Mounting Type | Through Hole |
| Pitch | 7.5mm |
| Power Rating | 600mW |
| Varistor Voltage | 390V |
| Varistor Voltage Tolerance | ±10% |
