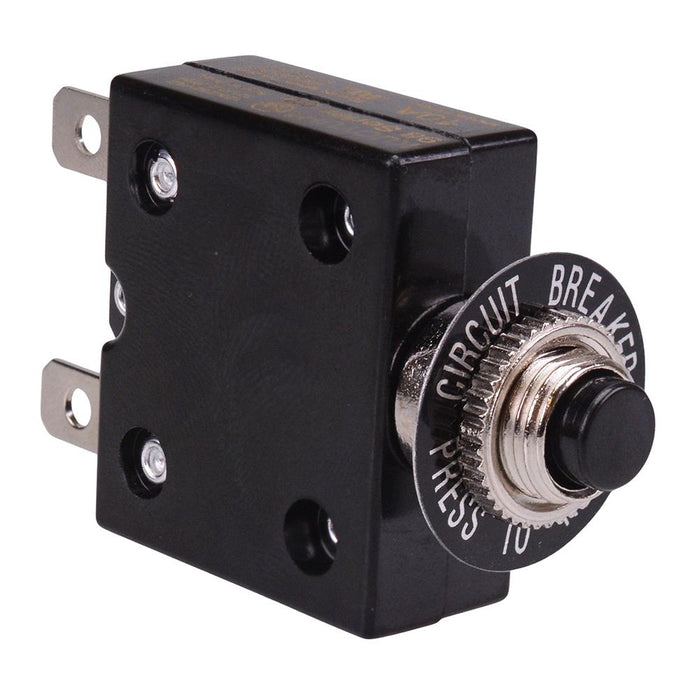

3A Panel Mount Thermal Circuit Breaker 250VAC / 50VDC
SKU 492981
MPN: 98-03-A1B14-C0ASB
Availability:
Out of stock
Sold out
Original price
£2.06
-
Original price
£2.06
Original price
£2.06
£2.06
-
£2.06
Current price
£2.06
3A thermal panel mount circuit breaker featuring a single pole and quick connect 6.3mm terminals. The circuit breaker features a 250VAC / 50VDC voltage rating, making it suitable for a wide range of applications including use with battery chargers, transformers, power supplies, appliances, machinery, tools and many more.
Current rating: 3A Voltage rating: 250VAC / 50VDC Trip time at 200%: 5-28 seconds Panel cut-out: 11mm Terminals: 6.3mm quick connect UL and TUV approved Complete with mounting hardware and nameplate Dimensions: 55.5 x 35.0 x 14.4mm (height x width x depth)
Specification
| Back Order Lead Time | 120 Days |
| Current Rating | 3A |
| Interrupting Capacity | 1000A |
| MOQ | 1 |
| Mounting Style | Panel |
| Operating Temperature | -10°C to +60°C |
| Panel Cut Out | 11mm |
| Voltage Rating | 250VAC, 50VDC |
