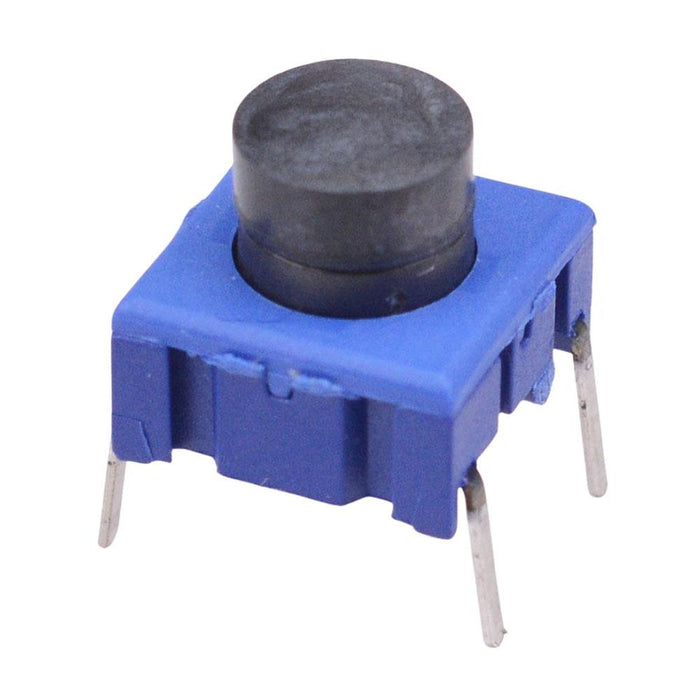

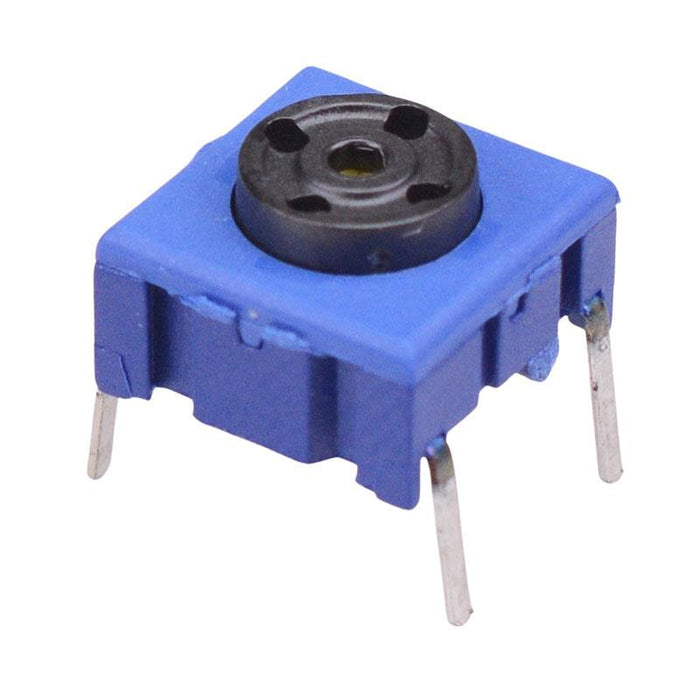

3ETL9-09.5 MEC 9.5mm PCB Tactile Switch SPST-NO 50mA 24VDC
by APEM
SKU 492754
MPN: 3ETL9-09.5
Availability:
70 in stock
Original price
£1.51
-
Original price
£1.51
Original price
£1.51
£1.51
-
£1.51
Current price
£1.51
The 3ETL9-09.5 is a high performance tactile switch manufactured by MEC, featuring NO silver contacts and IP67 sealing. The switches are part of the Multimec 3E series which feature a hole in the body for mounting Varimec caps. The robust design of the switches make them suitable for a wide range of commerical and industrial applications.
10 x 10mm package Height: 9.5mm Momentary NO contacts IP67 protection level Through hole mounting Actuation force: 3.0N Terminal pitch: 10.16 x 7.62mm Compatible caps: Foilmec 1Y/1YA, Varimec
Specification
| Actuation | Momentary |
| Contact Configuration | SPST |
| Contact Rating | 50mA 24VDC |
| Current Rating | 50mA |
| Height | 9.5mm |
| MOQ | 1 |
| Mounting Style | PCB |
| Operating Force | 3.0N |
| Pitch | 10.16 x 7.62mm |
| Product Series | Multimec 3E |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 24VDC |
