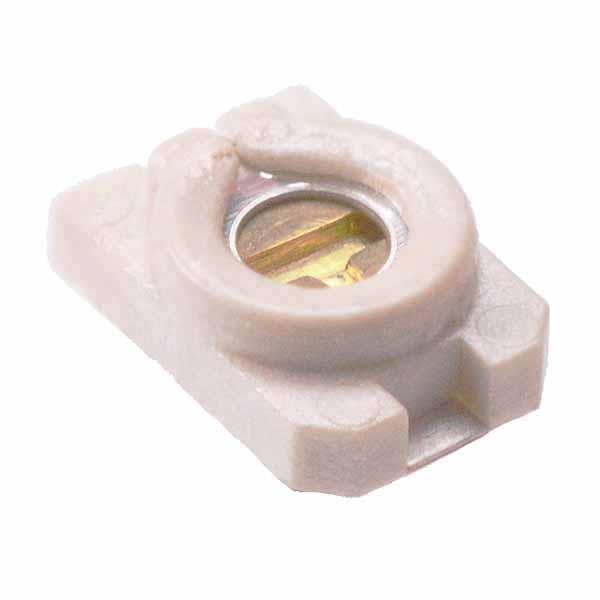

3pF SMD Variable Ceramic Trimmer Capacitor 85°C

SKU 482938


730 in stock
Original price £0.49 - Original price £0.49
Original price
£0.49 Inc VAT
£0.49 - £0.49
Current price £0.49 Inc VAT
3pF miniature ceramic trimmer capacitor manufactured from a high temperature polymer with low dielectric loss and good mechanical strength. The capacitor features a sealed construction and is designed for making fine adjustments and recalibration of electrical circuits.

  • Capacitance drift: ±2%
  • DC working voltage: 100VDC
  • Colour coded case for easy identification
  • Very good Q and high resonant frequency
  • Designed for reflow soldering
  • Lowest capacitance drift
  • Sealed construction prevents the penetration of Flux and Dust
  • Dimensions: 3.2mm x 4.5mm x 1.5mm (W x L x T)
  • Specification
    Back order lead time 45 Days
    Capacitance 1.5-3pF
    Length 4.5mm
    Moq 5
    Mounting style Surface Mount
    Operating temperature -25°C to +85°C
    Thickness 1.5mm
    Voltage rating 100VDC
    Width 3.2mm
