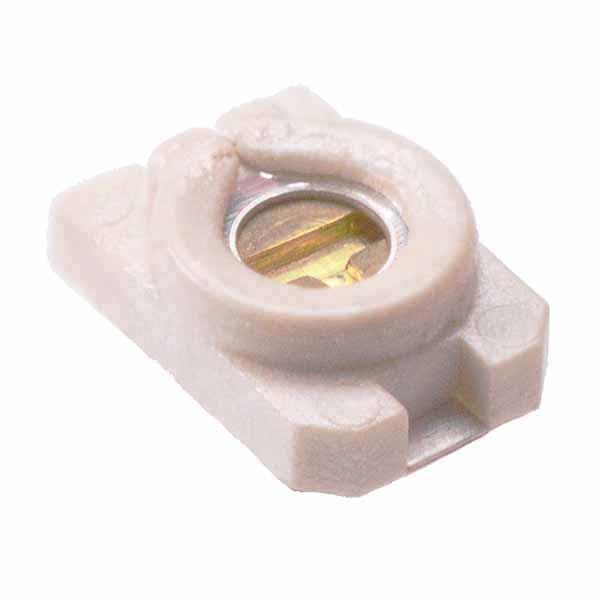

3pF SMD Variable Ceramic Trimmer Capacitor 85°C

3pF miniature ceramic trimmer capacitor manufactured from a high temperature polymer with low dielectric loss and good mechanical strength. The capacitor features a sealed construction and is designed for making fine adjustments and recalibration of electrical circuits.

Capacitance drift: ±2%

DC working voltage: 100VDC

Colour coded case for easy identification

Very good Q and high resonant frequency

Designed for reflow soldering

Lowest capacitance drift

Sealed construction prevents the penetration of Flux and Dust

Dimensions: 3.2mm x 4.5mm x 1.5mm (W x L x T)
