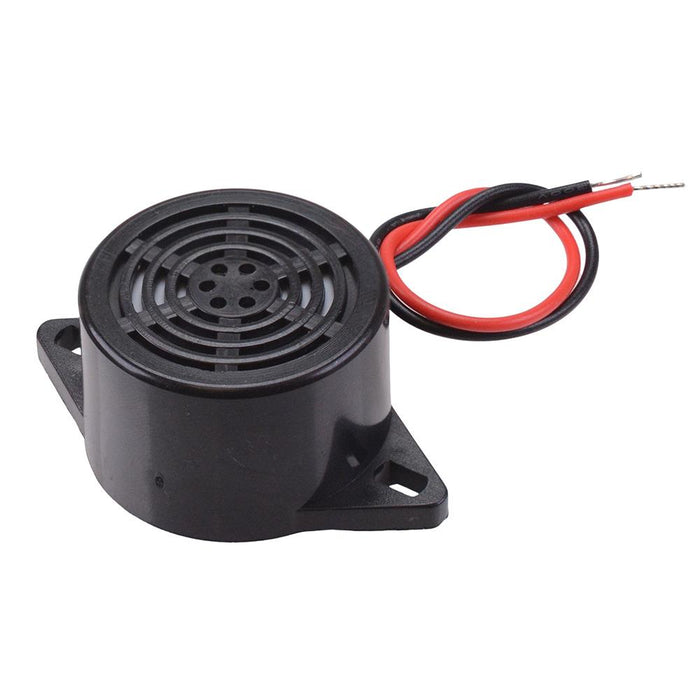

3V Electronic Buzzer with 150mm Leads

3V Electronic Buzzer with 150mm Leads

by Switch Electronics
SKU 483456

MPN: 483456

Availability:
135 in stock
£1.53 - £1.53
£1.53
£1.53
£1.53 - £1.53
£1.53
Panel mount circular electronic buzzer featuring 3V rated voltage and 150mm lead length.

  • Rated voltage: 3V
  • Maximum rated current: 40mA
  • Minimum sound output @ 20cm: 80dB
  • Frequency: 400±100Hz
  • Mounting hole pitch: 32mm
  • 2.5mm diameter mounting holes
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 45
    MOQ 1
    Frequency 400Hz
    Input Voltage 2-5VDC
    Mounting Style Panel Mount
    Operating Temperature -20°C to +60°C
    Rated Current 25mA
    Rated Voltage 3VDC
    Sound Output 70dB @ 20cm
