3V Miniature 13,100rpm DC Motor
SKU 551073
MPN: 551073
Availability:
7196 in stock, ready to be shipped
Original price
£0.64
-
Original price
£0.64
Original price
£0.64
Inc VAT
£0.64
-
£0.64
Current price
£0.64
Inc VAT

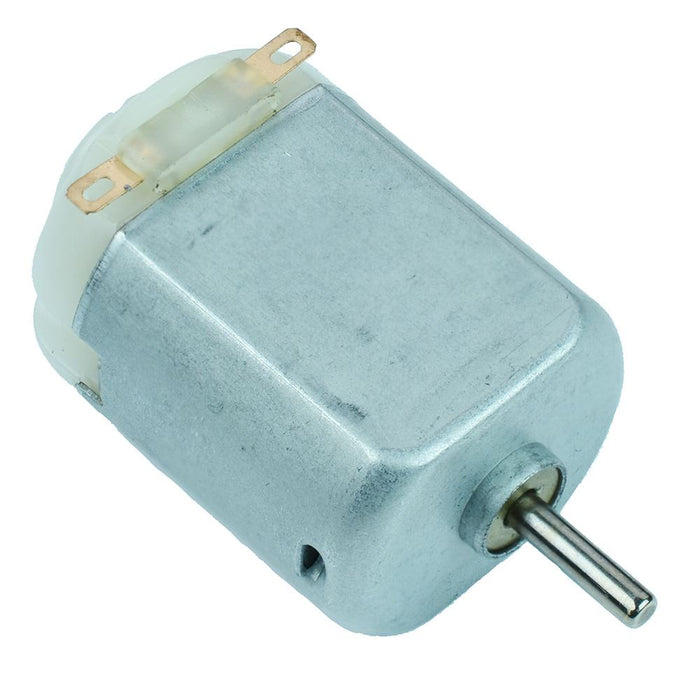

Miniature DC motor with a 1.5-4.5V operating voltage, and two flat sides making the motor suitable for mounting on a PCB. The motor features solder terminals and rotates counter clockwise when viewed from the shaft end.
3V DC voltage rating 1.046W power rating 16,000rpm no load speed 12407rpm nominal speed 1.001A load current 8.2g-cm maximum continuous torque 36.6g-cm stall torque Dimensions: 19.9 x 25mm (Diameter x Length) 2mm shaft diameter 8.1mm shaft length 34.81% efficiency
Specification
| Diameter | 20mm |
| Length | 25mm |
| No load current | 0.34A |
| No load speed | 16,400rpm |
| Operating voltage | 1.5-4.5V |
| Rated load current | 1.07A |
| Rated load speed | 13,100rpm |
| Rated voltage | 3V |
| Shaft diameter | 2mm |
| Shaft length | 9.4mm |
| Width | 15.1mm |
