3V PCB Electronic Buzzer

3V PCB Electronic Buzzer

by Switch Electronics
SKU 483453

MPN: 483453

Availability:
Out of stock
Sold out
£1.01 - £1.01
£1.01
£1.01
£1.01 - £1.01
£1.01

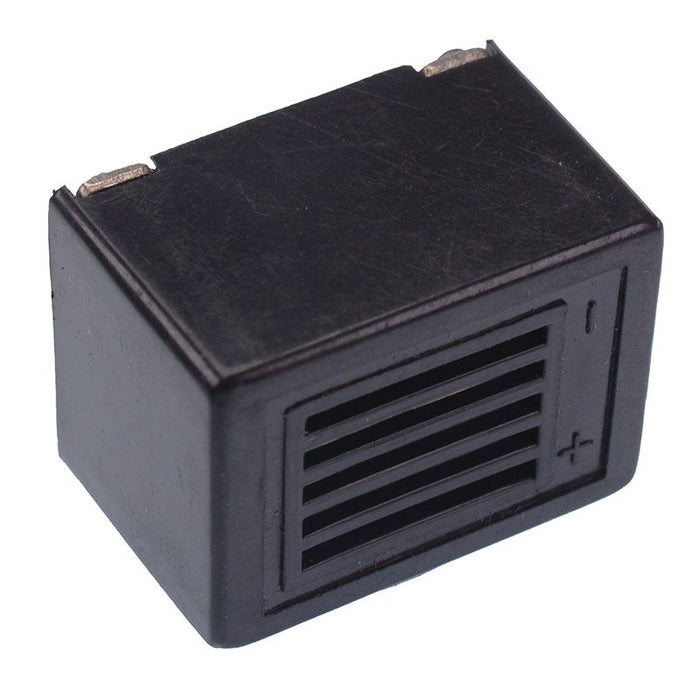

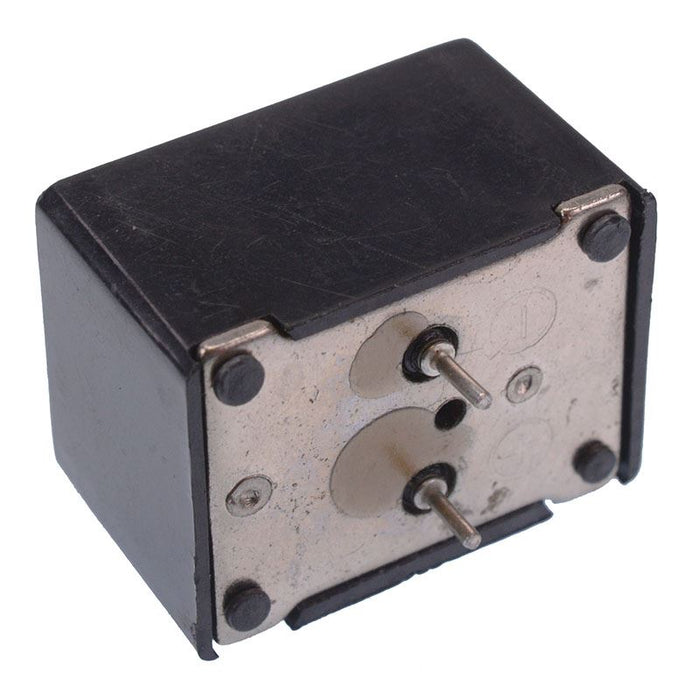

3V PCB mount electronic buzzer featuring a 7.6mm terminal pitch and 2-4V operating voltage.

  • Operating voltage: 2-5V
  • Rated current: 25mA
  • Sound output @ 20cm: 70dB
  • Frequency: 400±100Hz
  • PCB terminal pitch: 7.6mm
  • Dimensions: 23 x 17 x 15mm (Length x Width x Height)
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 45
    MOQ 1
    Frequency 400Hz
    Input Voltage 2-5VDC
    Mounting Style PCB Mount
    Operating Temperature -20°C to +60°C
    Pitch 7.6mm
    Rated Current 25mA
    Rated Voltage 3VDC
    Sound Output 70dB @ 20cm
