4.7K Linear Stereo PC16 Potentiometer Piher
by Piher
SKU 486438
MPN: 6PSI-4K7
Availability:
16 in stock
Original price
£5.07
-
Original price
£5.07
Original price
£5.07
£5.07
-
£5.07
Current price
£5.07

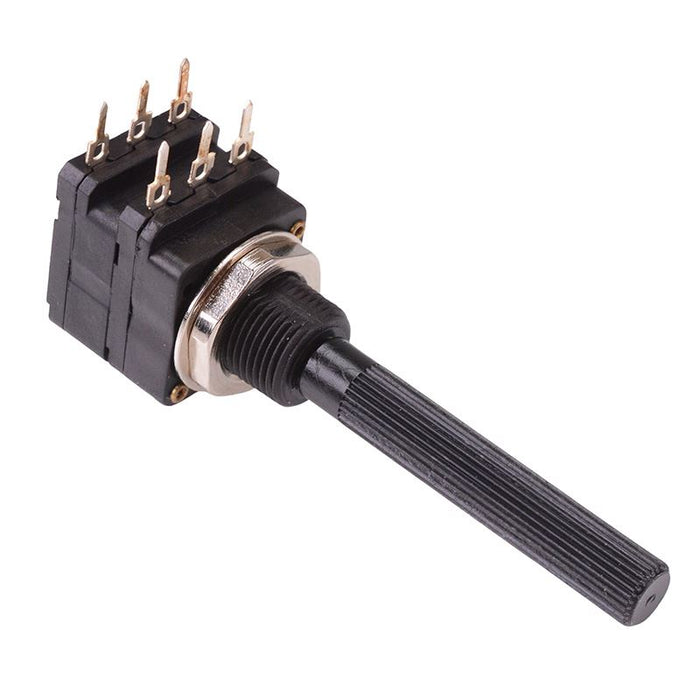

Piher enclosed 4K7 linear stereo potentiometer featuring a 6mm diameter shaft and self-extinguishing plastic case, suitable for PCB applications.
6mm diameter splined shaft 31.5mm shaft length ±20% tolerance 300° mechanical rotation Carbon resistive element Dust proof enclosure Self extinguishable material UL94V-0 Piher PC16 series
Specification
Back Order Lead Time | 5 Days |
Maximum Voltage | 250VDC |
Mounting Hole Diameter | 10mm |
Mounting Type | Panel Mount |
Operating Temperature | -25°C to +70°C |
Pitch | 5mm |
Power Rating | 0.2W |
Resistance | 4.7KΩ |
Shaft Diameter | 6mm |
Taper | Linear |
Termination Type | Pin |
Tolerance | ±20% |
Total Rotation | 300° |
