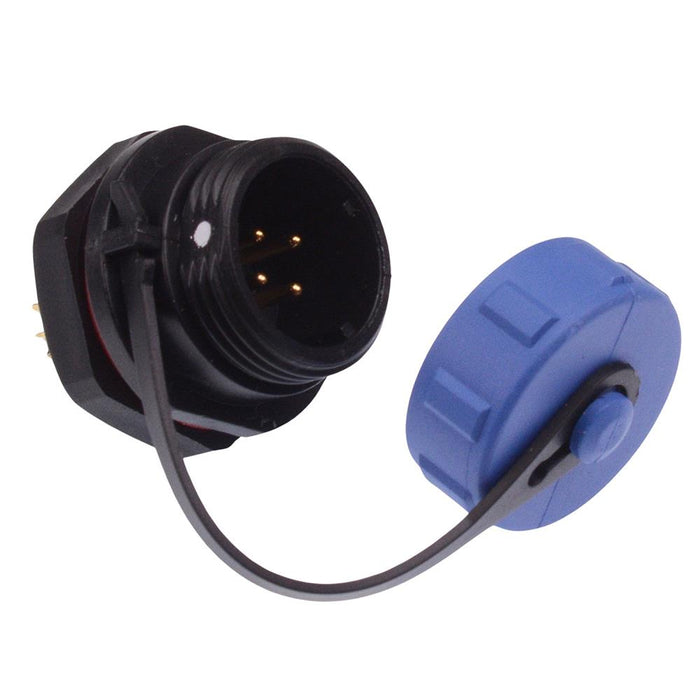

4 Pin Waterproof Male Socket Panel Mount Connector IP68
SKU 482014
MPN: 482014
Availability:
122 in stock
Original price
£2.84
-
Original price
£2.84
Original price
£2.84
£2.84
-
£2.84
Current price
£2.84
4 way male socket featuring IP68 protection rating suitable for panel mount applications requiring a waterproof and rugged connector.
Outer cable diameter: 4.5-6mm
Protection level: IP68
Rating: 5A 200V
Solder termination
Rated for 500 mating cycles
Dimensions: 24.4 x 20mm (length x diameter)
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 5A |
| Gender | Male |
| Housing Material | PA66 |
| Mounting Type | Panel Mount |
| Number of Ways | 4 |
| Operating Temperature | -25°C to +80°C |
| Protection Level | IP68 |
| Termination Method | Solder |
| Thread Size | W13 |
| Voltage Rating | 200V |
| Wire Range | 4-6.5mm Diameter |
