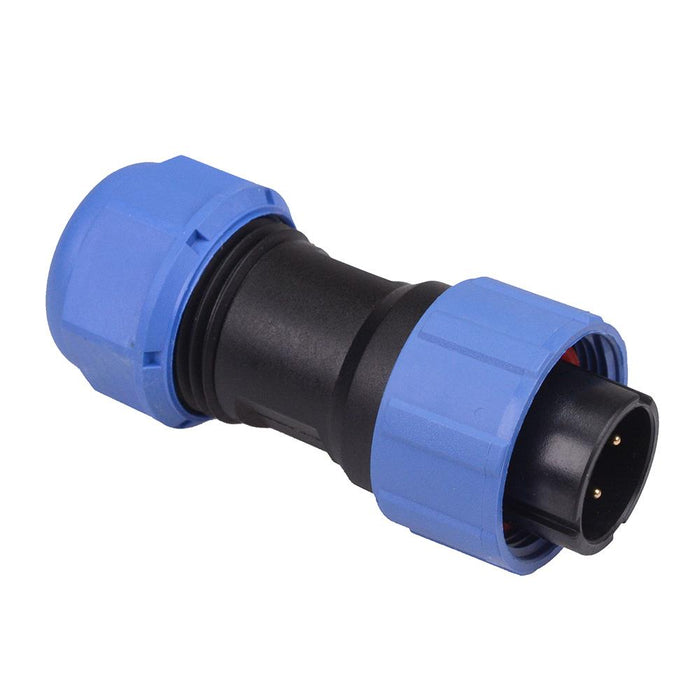

4 Pin Waterproof W17 Male Plug Cable Connector IP68
SKU 490951
MPN: SE-W17A1-04
Availability:
48 in stock
Original price
£3.16
-
Original price
£3.16
Original price
£3.16
£3.16
£3.16
-
£3.16
Current price
£3.16
4 way W17 male circular plug featuring IP68 protection rating and solder terminals. The connector features a compact design, suitable for applications requiring a waterproof rugged connector.
Outer cable diameter: 6-10mm Protection level: IP68 Rating: 5A 500V Solder termination Rated for 500 mating cycles Dimensions: 56 x 23.6mm (length x diameter)
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 5A |
| Gender | Male |
| Housing Material | PPO, PA66 |
| MOQ | 1 |
| Mounting Type | Cable |
| Number of Ways | 4 |
| Operating Temperature | -25°C to +80°C |
| Protection Level | IP68 |
| Termination Method | Solder |
| Thread Size | W17 |
| Voltage Rating | 500V |
| Wire Range | ≤18AWG |
