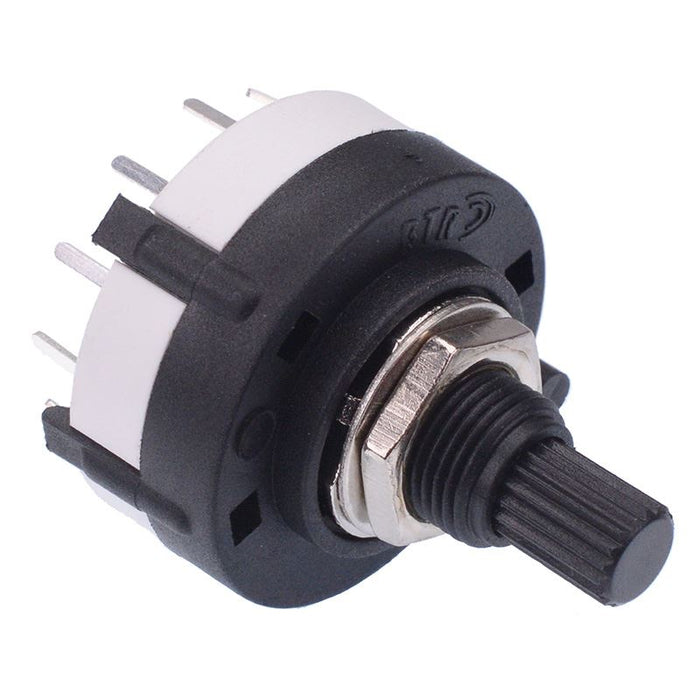

4 Pole 3 Way Rotary Switch Splined Shaft PCB Terminals

SKU 486504

MPN: 486504

Availability:
69 in stock
Original price £1.79 - Original price £1.79
Original price
£1.79 Inc VAT
£1.79 - £1.79
Current price £1.79 Inc VAT
4 pole break before make rotary switch featuring 3 ways and 18T splined 6mm shaft. The switch features PCB terminals and are suitable for a wide range of through hole applications.

  • 4 pole 3 way
  • 18T splined shaft
  • PCB terminals
  • Break before make
  • 7.5mm shaft length
  • Complete with nut, washer and position stop
  • Dimensions: 33 x 26mm (Height x Diameter)
  • Specification
    Back order lead time 30 Days
    Contact configuration 4P3T
    Contact rating 2.5A 125VAC, 0.35A 125VDC
    Current rating 2.5A @ 125VAC
    Electrical life 15,000 Cycles
    Material Nylon
    Mounting style PCB
    Number of poles 4
    Number of ways 3
    Operating force 400gf
    Operating temperature -30°C to +85°C
    Panel cut out 10mm
    Terminal type Solder
    Voltage rating 125VAC
