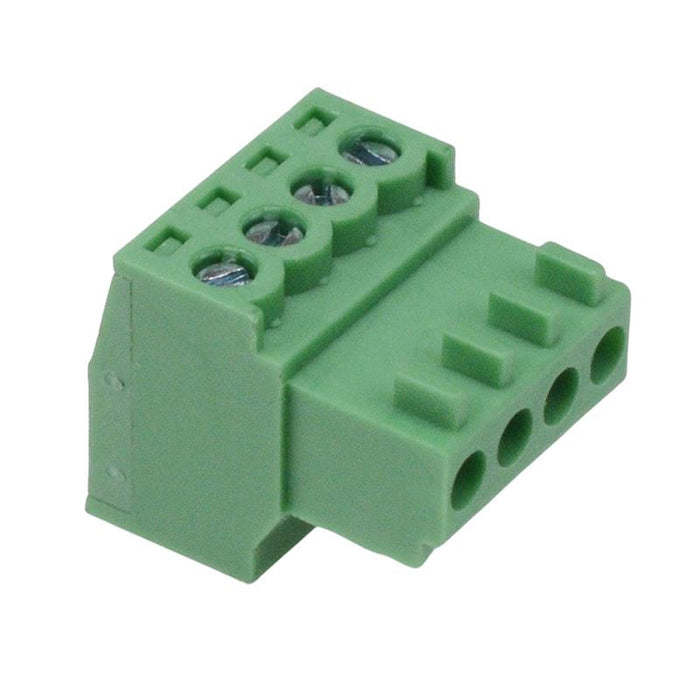

4-Way 2.54mm Right Angle Pluggable Terminal Block 4A 125V
SKU 488500
MPN: 488500
Availability:
464 in stock
Original price
£0.52
-
Original price
£0.52
Original price
£0.52
£0.52
£0.52
-
£0.52
Current price
£0.52
4 pin pluggable PCB terminal block featuring a 2.54mm pitch and horizontal body orientation suitable for 28 to 20AWG cable.
4 poles 4A current rating 125V voltage rating 28-20AWG wire size Rising clamp termination
Specification
| Back Order Lead Time | 30 Days |
| Colour | Green |
| Current Rating | 4A |
| Housing Material | PA66 |
| Mounting Type | Cable Mount |
| Number of Ways | 4 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 2.54mm |
| Termination Method | Screw |
| Voltage Rating | 125VAC |
| Wire Range | 28-20AWG |
