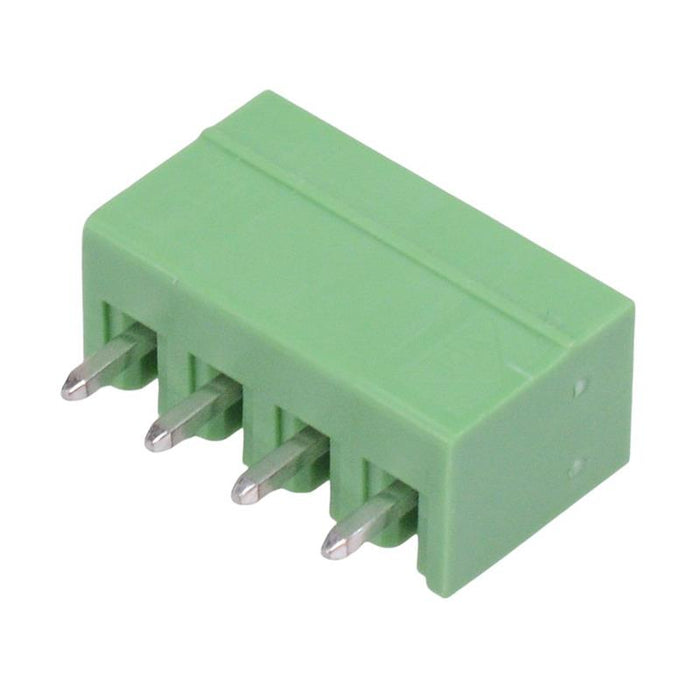

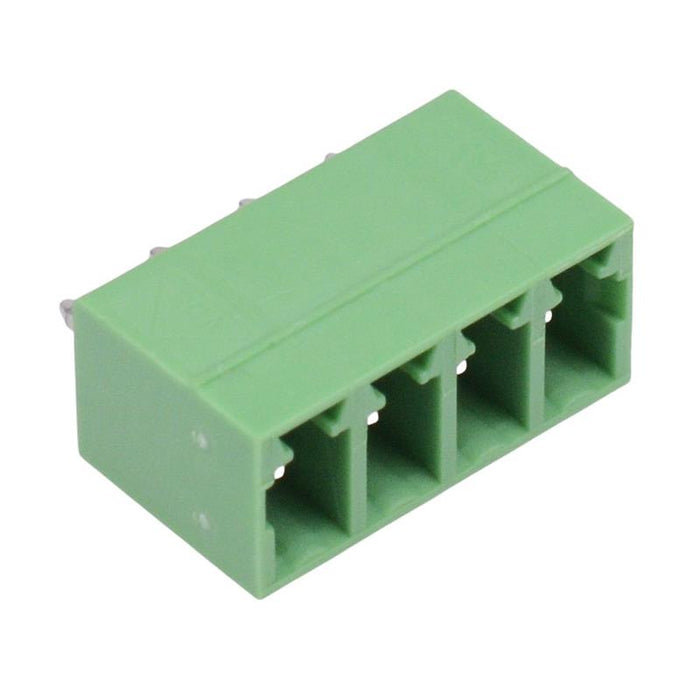

4-Way 3.81mm Vertical PCB Header Closed Ends 8A 300V
by Degson
SKU 488738
MPN: 15EDGVC-3.81/4P
Availability:
3195 in stock
Original price
£0.30
-
Original price
£0.30
Original price
£0.30
£0.32
£0.32
-
£0.32
Current price
£0.32
4 pole PCB header manufactured by Degson, featuring a 3.81mm pitch and vertical orientation. The headers are rated up to 8A, making them suitable for mating with 3.81mm pluggable terminal blocks.
4 pole 3.81mm pitch Vertical orientation Closed ends Material: PA66 PCB hole diameter: 1.4mm Rating: 8A 300V
Specification
| Back Order Lead Time | 150 Days |
| Current Rating | 8A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | PCB Mount |
| Number of Ways | 4 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 3.81mm |
| Termination Method | Through Hole |
| Voltage Rating | 300V |
