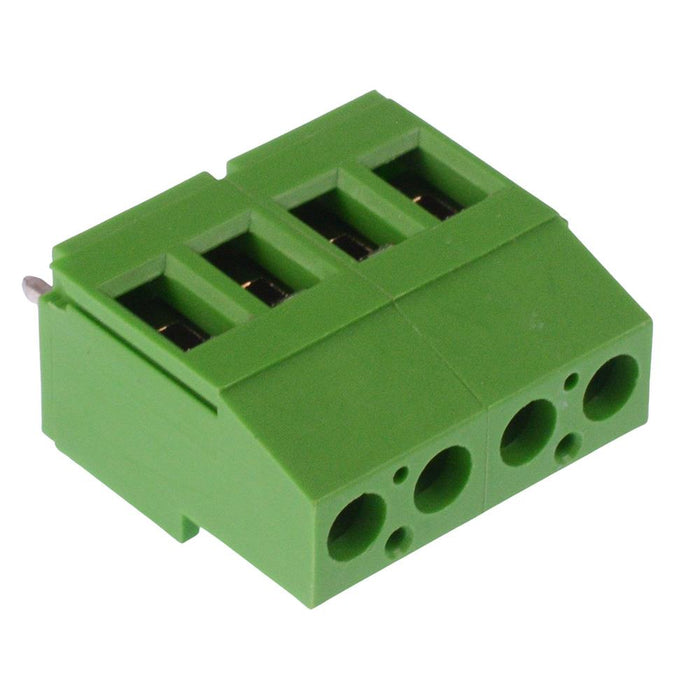

4-Way 5.00mm PCB Terminal Block Green 20A 300V

SKU 488164

MPN: AK700/04-5,0-V-GREEN

Availability:
175 in stock
Original price £0.58 - Original price £0.58
Original price
£0.58 Inc VAT
£0.58 - £0.58
Current price £0.58 Inc VAT
4 pole PCB terminal block manufactured by PTR HARTMANN, featuring a 5mm pitch and parallel wire entry to the board. The terminal blocks are rated up to 20A, making them suitable for a wide range of PCB applications.

  • 4 pole
  • 5.00mm pitch
  • Wire entry parallel to the board
  • Material: PA66
  • Rating: 20A 300V
  • Wire size: 30-12AWG
  • Specification
    Back order lead time 10 Days
    Colour Green
    Contact material Brass
    Current rating 20A
    Housing material PA66
    Mounting type PCB Mount
    Number of ways 4
    Operating temperature -40°C to +105°C
    Pitch 5.00mm
    Termination method Screw
    Voltage rating 300VAC
    Wire range 30-12AWG
