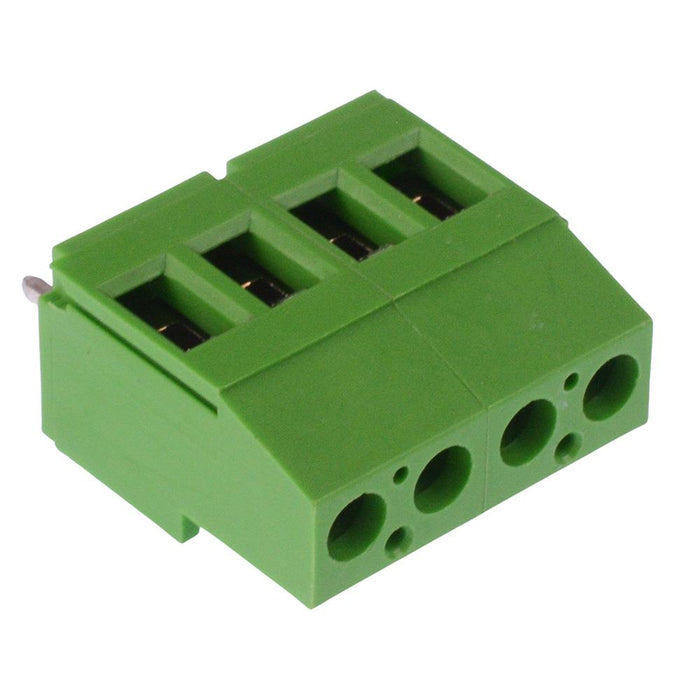

4-Way 5.00mm PCB Terminal Block Green 20A 300V
by PTR HARTMANN
SKU 488164
MPN: AK700/04-5,0-V-GREEN
Availability:
175 in stock
Original price
£0.52
-
Original price
£0.52
Original price
£0.52
£0.52
£0.52
-
£0.52
Current price
£0.52
4 pole PCB terminal block manufactured by PTR HARTMANN, featuring a 5mm pitch and parallel wire entry to the board. The terminal blocks are rated up to 20A, making them suitable for a wide range of PCB applications.
4 pole 5.00mm pitch Wire entry parallel to the board Material: PA66 Rating: 20A 300V Wire size: 30-12AWG
Specification
| Back Order Lead Time | 10 Days |
| Colour | Green |
| Contact Material | Brass |
| Current Rating | 20A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 4 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 30-12AWG |
