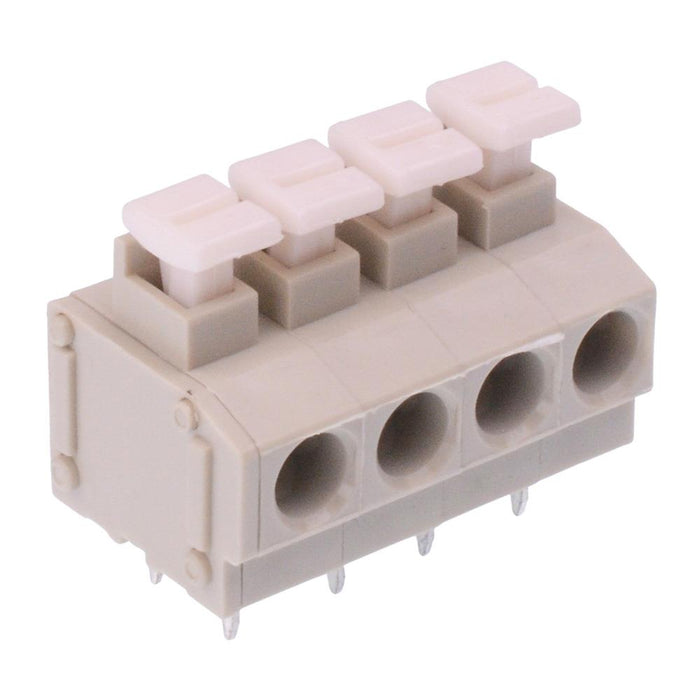

4-Way 5.00mm Screwless PCB Terminal Block Grey 10A 300V
by PTR HARTMANN
SKU 487598
MPN: AK4101/04KD-5,0-PEBBLE GREY
Availability:
783 in stock
Original price
£0.56
-
Original price
£0.56
Original price
£0.56
£0.56
£0.56
-
£0.56
Current price
£0.56
4 pole PCB terminal block manufactured by PTR HARTMANN, featuring a 5mm pitch and parallel wire entry to the board. The terminal blocks are rated up to 10A, making them suitable for a wide range of PCB applications.
4 pole 5.00mm pitch Push-in connection Wire entry parallel to the board Material: PA66 Rating: 10A 300V Wire size: 20-14AWG
Specification
| Back Order Lead Time | 10 Days |
| Colour | Grey |
| Contact Material | Stainless Steel |
| Current Rating | 10A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 4 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination Method | Push Clamp |
| Voltage Rating | 300VAC |
| Wire Range | 20-14AWG |
