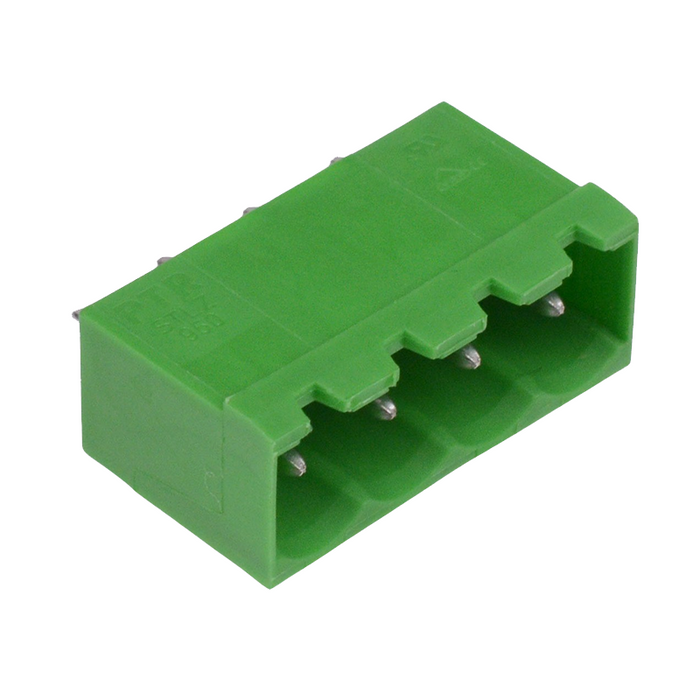

4-Way 5.08mm Vertical PCB Header Closed Ends Green 16A 300V
by PTR HARTMANN
SKU 488456
MPN: STLZ950/04G-5.08-V-GREEN
Availability:
354 in stock
Original price
£0.38
-
Original price
£0.38
Original price
£0.38
£0.38
£0.38
-
£0.38
Current price
£0.38
4 pole PCB header manufactured by PTR HARTMANN, featuring a 5.08mm pitch and vertical wire entry. The terminal blocks are rated up to 16A, making them suitable for a wide range of PCB applications.
4 pole 5.08mm pitch Vertical wire entry Closed ends Material: PA66 PCB hole diameter: 1.4mm Rating: 16A 300V
Specification
| Back Order Lead Time | 120 |
| Colour | Green |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Housing Material | PA66 |
| MOQ | 5 |
| Mounting Type | PCB Mount |
| Number of Ways | 4 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.08mm |
| Voltage Rating | 300VAC |
