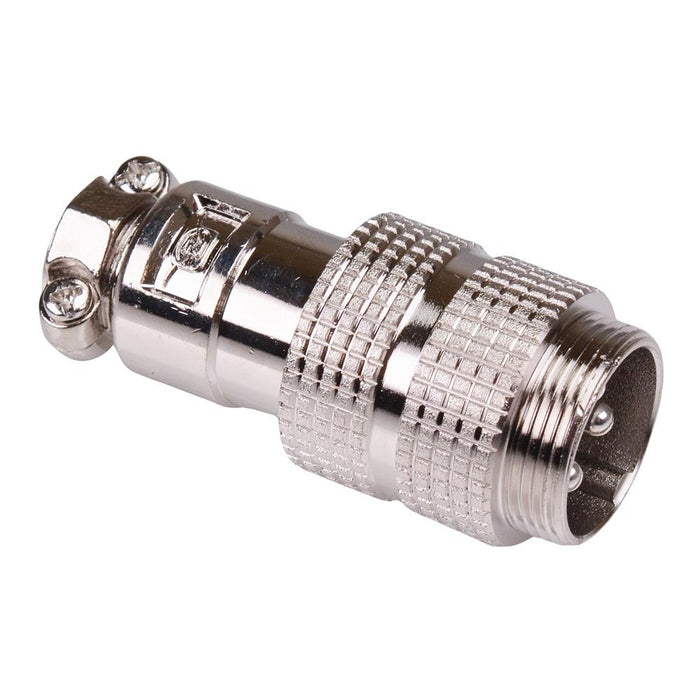

4 Way Male M19 Metal Circular Connector Socket
SKU 488520
MPN: 488520
Availability:
100 in stock
Original price
£4.00
-
Original price
£4.00
Original price
£4.00
£4.00
-
£4.00
Current price
£4.00
4 pole male circular connector featuring a metal body and IP55 protection rating. The socket features an M19 thread and high current rating suitable for a wide range of applications.
4 ways Rating: 35A 250V 51.6mm length Solder contacts Cable diameter: 9.5mm max
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Copper |
| Current Rating | 35A |
| Gender | Male |
| Housing Material | Zinc Alloy |
| Mounting Type | Cable Mount |
| Number of Ways | 4 |
| Operating Temperature | -20°C to +85°C |
| Protection Level | IP55 |
| Termination Method | Solder |
| Thread Size | M19 |
| Voltage Rating | 250V |
| Wire Range | 9.5mm Max |
