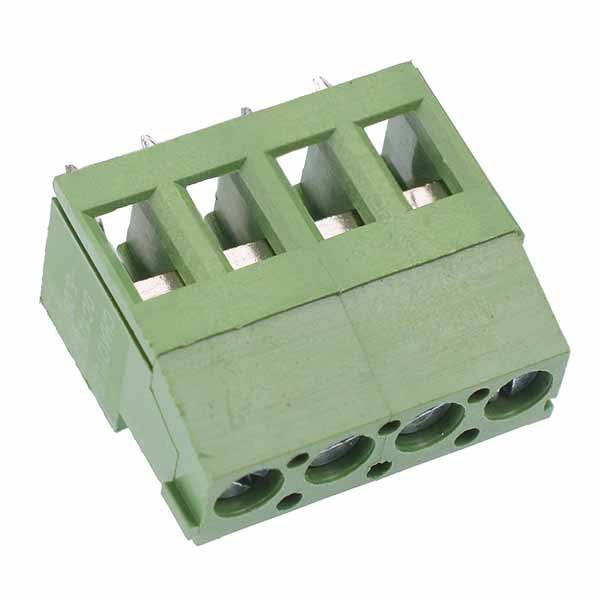

4 Way PCB Terminal Block Connector 5.08mm 20A
SKU 483128
MPN: 483128
Availability:
109 in stock
Save 18%
Original price
£0.56
Original price
£0.56
-
Original price
£0.56
Original price
£0.56
Current price
£0.46
£0.46
-
£0.46
Current price
£0.46
4 pole 5.08mm pitch terminal block moulded from PA66, suitable for a wide range of applications.
4 ways 5.08mm Pitch 20A Maximum Current 300V maximum voltage Slotted Screws End Stackable 12-26AWG wire range
Specification
| Back Order Lead Time | 30 Days |
| Colour | Green |
| Contact Material | Tin Plated Brass |
| Current Rating | 20A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 4 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.08mm |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 12-26AWG |
