4-Way Wago 773-104 Push Connectors 2.5mm²
by Wago
SKU 356085
MPN: 773-104
Availability:
814 in stock
Original price
£0.29
-
Original price
£0.29
Original price
£0.29
£0.29
-
£0.29
Current price
£0.29

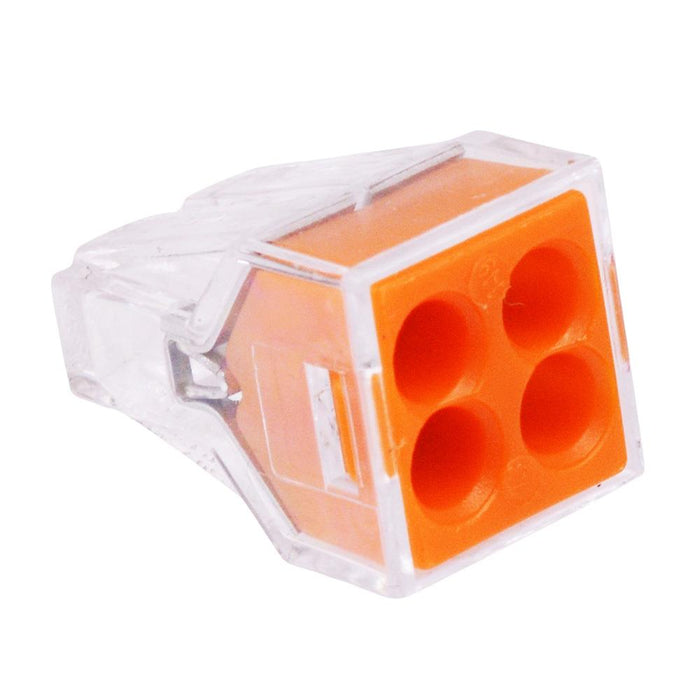

The WAGO 773-104 is a 4 way push wire connector for junction boxes providing an immediate solution for use with solid conductors with cross sections up 2.5mm². The transparent housing also enables the electrician or installer to see at a glance whether all the conductors have been fully inserted and properly connected.
Transparent housing Push wire technology Solid conductor wire size: 0.75 to 2.5mm² Stranded conductor wire size: 1.5 to 2.5mm² Wire strip length: 12mm Maximum current: 24A Maximum voltage: 400V
Specification
| Back Order Lead Time | 5 Days |
| Colour | Orange |
| Contact Material | Copper |
| Current Rating | 24A |
| Housing Material | PC |
| Mounting Type | Cable Mount |
| Number of Ways | 4 |
| Termination Method | Push In |
| Voltage Rating | 400V |
| Wire Range | 2.5mm² Maximum |
