4 Way Waterproof Sealed On-Off Rocker Switch Panel 12-24VDC IP66

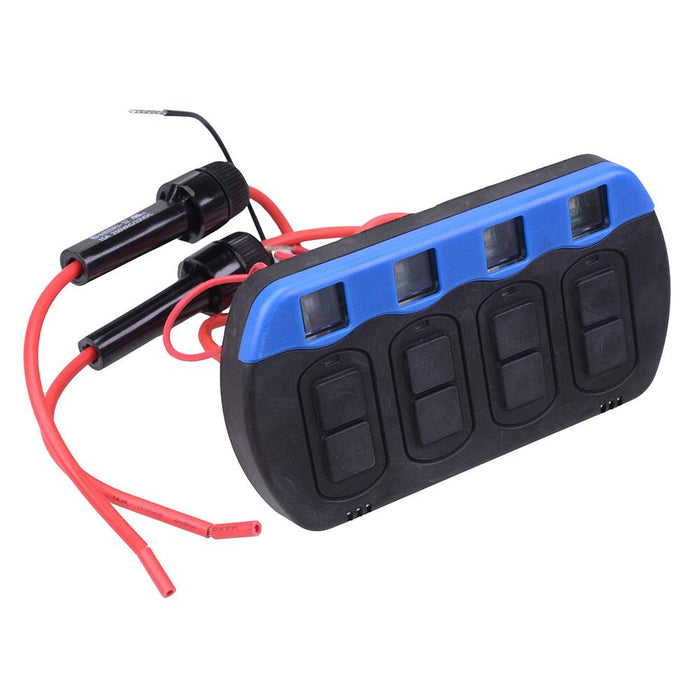

The PR18-H4A-242A32AA is a sealed rocker switch panel featuring 4 On/Off switches with LED indicators when the switch is in the 'On' position. The panel is sealed to IP66 featuring a rubber mounting gasket and integral cover seal. The cover includes a clear plastic membrane with rubber over-mould allowing the switch to be easily operated while providing a clear window for label backlighting. The panel is suitable for 12V and 24V applications including automotive and marine.

4 way On/Off rocker switches

Red switch status LED indicators

Protection level: IP66

Voltage rating: 12-24VDC

Output rating: 10A max per circuit, 15A per for 2 circuits

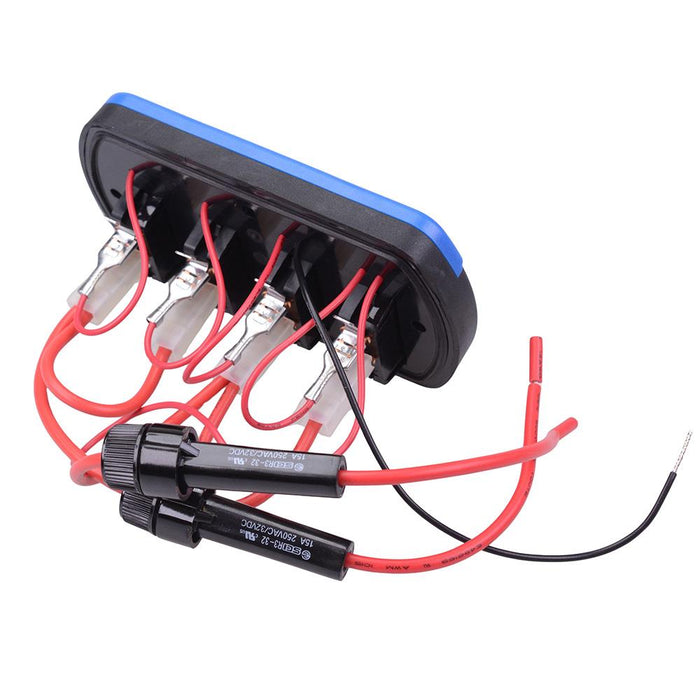

Twin 5x20mm fuse holders with 15A fuse

6.3mm piggyback terminals

Mounting hole pitch: 96 x 40mm

Dimensions: 118.5 x 62.6mm (width x height)
